1. Structural Features and Distinct Bonding Nature
1.1 Crystal Design and Layered Atomic Setup

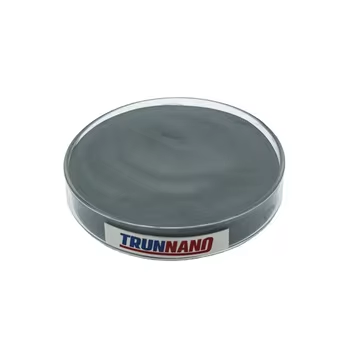

(Ti₃AlC₂ powder)
Ti ₃ AlC two belongs to an unique course of split ternary ceramics referred to as MAX phases, where “M” denotes a very early transition metal, “A” stands for an A-group (mainly IIIA or IVA) element, and “X” represents carbon and/or nitrogen.
Its hexagonal crystal structure (room team P6 ₃/ mmc) includes alternating layers of edge-sharing Ti ₆ C octahedra and light weight aluminum atoms prepared in a nanolaminate fashion: Ti– C– Ti– Al– Ti– C– Ti, creating a 312-type MAX stage.
This gotten stacking results in solid covalent Ti– C bonds within the transition metal carbide layers, while the Al atoms reside in the A-layer, contributing metallic-like bonding characteristics.
The mix of covalent, ionic, and metallic bonding grants Ti ₃ AlC ₂ with an unusual crossbreed of ceramic and metallic residential or commercial properties, identifying it from traditional monolithic porcelains such as alumina or silicon carbide.
High-resolution electron microscopy reveals atomically sharp interfaces in between layers, which assist in anisotropic physical behaviors and unique deformation mechanisms under tension.
This layered design is crucial to its damage tolerance, making it possible for mechanisms such as kink-band formation, delamination, and basic aircraft slip– unusual in weak porcelains.
1.2 Synthesis and Powder Morphology Control
Ti five AlC â‚‚ powder is generally manufactured with solid-state reaction courses, including carbothermal reduction, hot pushing, or spark plasma sintering (SPS), beginning with essential or compound precursors such as Ti, Al, and carbon black or TiC.
A common response path is: 3Ti + Al + 2C → Ti Three AlC ₂, conducted under inert atmosphere at temperature levels in between 1200 ° C and 1500 ° C to avoid aluminum dissipation and oxide development.
To get great, phase-pure powders, exact stoichiometric control, extended milling times, and maximized home heating accounts are essential to subdue completing phases like TiC, TiAl, or Ti â‚‚ AlC.
Mechanical alloying followed by annealing is commonly utilized to boost reactivity and homogeneity at the nanoscale.
The resulting powder morphology– ranging from angular micron-sized bits to plate-like crystallites– depends upon processing parameters and post-synthesis grinding.
Platelet-shaped bits mirror the intrinsic anisotropy of the crystal structure, with larger measurements along the basic airplanes and thin stacking in the c-axis instructions.
Advanced characterization through X-ray diffraction (XRD), scanning electron microscopy (SEM), and energy-dispersive X-ray spectroscopy (EDS) makes sure stage pureness, stoichiometry, and particle dimension distribution appropriate for downstream applications.
2. Mechanical and Useful Feature
2.1 Damage Tolerance and Machinability
( Ti₃AlC₂ powder)
One of the most exceptional features of Ti three AlC â‚‚ powder is its extraordinary damages resistance, a residential or commercial property hardly ever found in traditional ceramics.
Unlike brittle products that fracture catastrophically under load, Ti six AlC two shows pseudo-ductility via devices such as microcrack deflection, grain pull-out, and delamination along weak Al-layer user interfaces.
This enables the material to absorb energy before failure, causing greater fracture toughness– normally ranging from 7 to 10 MPa · m ¹/ ²– contrasted to
