1. Product Fundamentals and Structural Properties
1.1 Crystal Chemistry and Polymorphism

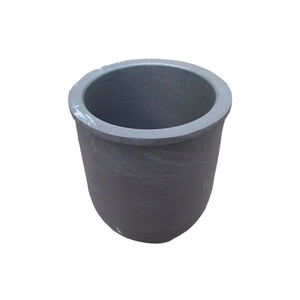

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic made up of silicon and carbon atoms arranged in a tetrahedral lattice, creating among the most thermally and chemically robust products known.
It exists in over 250 polytypic kinds, with the 3C (cubic), 4H, and 6H hexagonal structures being most appropriate for high-temperature applications.
The strong Si– C bonds, with bond energy exceeding 300 kJ/mol, give extraordinary hardness, thermal conductivity, and resistance to thermal shock and chemical strike.
In crucible applications, sintered or reaction-bonded SiC is liked because of its ability to maintain architectural integrity under severe thermal gradients and corrosive molten atmospheres.
Unlike oxide porcelains, SiC does not go through turbulent phase shifts approximately its sublimation point (~ 2700 ° C), making it excellent for continual operation above 1600 ° C.
1.2 Thermal and Mechanical Performance
A specifying attribute of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m · K)– which promotes consistent warm circulation and lessens thermal anxiety during rapid home heating or air conditioning.
This property contrasts dramatically with low-conductivity ceramics like alumina (≈ 30 W/(m · K)), which are prone to splitting under thermal shock.
SiC also shows outstanding mechanical strength at elevated temperature levels, retaining over 80% of its room-temperature flexural strength (up to 400 MPa) also at 1400 ° C.
Its reduced coefficient of thermal growth (~ 4.0 × 10 ⁻⁶/ K) additionally enhances resistance to thermal shock, a crucial factor in repeated cycling between ambient and functional temperature levels.
In addition, SiC demonstrates remarkable wear and abrasion resistance, guaranteeing long service life in atmospheres entailing mechanical handling or stormy melt circulation.
2. Production Techniques and Microstructural Control
( Silicon Carbide Crucibles)
2.1 Sintering Techniques and Densification Strategies
Industrial SiC crucibles are primarily made with pressureless sintering, response bonding, or hot pushing, each offering unique advantages in price, pureness, and efficiency.
Pressureless sintering involves compacting fine SiC powder with sintering aids such as boron and carbon, complied with by high-temperature therapy (2000– 2200 ° C )in inert ambience to accomplish near-theoretical thickness.
This approach yields high-purity, high-strength crucibles appropriate for semiconductor and advanced alloy processing.
Reaction-bonded SiC (RBSC) is produced by penetrating a permeable carbon preform with liquified silicon, which reacts to develop β-SiC sitting, leading to a compound of SiC and recurring silicon.
While somewhat reduced in thermal conductivity as a result of metal silicon inclusions, RBSC supplies exceptional dimensional security and reduced production expense, making it prominent for large-scale commercial usage.
Hot-pressed SiC, though extra expensive, provides the highest possible density and purity, reserved for ultra-demanding applications such as single-crystal development.
2.2 Surface Area High Quality and Geometric Accuracy
Post-sintering machining, including grinding and washing, makes certain accurate dimensional resistances and smooth interior surfaces that lessen nucleation websites and minimize contamination threat.
Surface roughness is very carefully controlled to avoid thaw adhesion and help with easy release of strengthened materials.
Crucible geometry– such as wall surface density, taper angle, and bottom curvature– is maximized to stabilize thermal mass, structural toughness, and compatibility with heating system burner.
Personalized designs accommodate specific thaw volumes, heating profiles, and product sensitivity, making certain ideal efficiency throughout varied industrial procedures.
Advanced quality control, including X-ray diffraction, scanning electron microscopy, and ultrasonic screening, validates microstructural homogeneity and absence of defects like pores or fractures.
3. Chemical Resistance and Communication with Melts
3.1 Inertness in Hostile Atmospheres
SiC crucibles display remarkable resistance to chemical attack by molten steels, slags, and non-oxidizing salts, surpassing typical graphite and oxide ceramics.
They are secure in contact with liquified light weight aluminum, copper, silver, and their alloys, standing up to wetting and dissolution because of low interfacial energy and formation of safety surface oxides.
In silicon and germanium handling for photovoltaics and semiconductors, SiC crucibles stop metal contamination that could deteriorate electronic residential properties.
However, under highly oxidizing conditions or in the presence of alkaline fluxes, SiC can oxidize to develop silica (SiO TWO), which may respond better to form low-melting-point silicates.
Consequently, SiC is best matched for neutral or reducing atmospheres, where its stability is made the most of.
3.2 Limitations and Compatibility Considerations
Despite its effectiveness, SiC is not globally inert; it reacts with certain molten products, specifically iron-group steels (Fe, Ni, Carbon monoxide) at heats via carburization and dissolution processes.
In molten steel handling, SiC crucibles break down quickly and are for that reason avoided.
In a similar way, alkali and alkaline earth metals (e.g., Li, Na, Ca) can lower SiC, releasing carbon and developing silicides, restricting their use in battery material synthesis or responsive steel casting.
For molten glass and porcelains, SiC is typically compatible but might present trace silicon into extremely sensitive optical or digital glasses.
Recognizing these material-specific interactions is vital for picking the appropriate crucible type and making certain process pureness and crucible longevity.
4. Industrial Applications and Technological Evolution
4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors
SiC crucibles are indispensable in the production of multicrystalline and monocrystalline silicon ingots for solar batteries, where they stand up to extended direct exposure to thaw silicon at ~ 1420 ° C.
Their thermal security ensures consistent formation and reduces dislocation thickness, straight influencing photovoltaic efficiency.
In shops, SiC crucibles are made use of for melting non-ferrous steels such as light weight aluminum and brass, supplying longer life span and reduced dross formation compared to clay-graphite alternatives.
They are additionally utilized in high-temperature research laboratories for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of innovative ceramics and intermetallic compounds.
4.2 Future Fads and Advanced Material Combination
Arising applications consist of making use of SiC crucibles in next-generation nuclear products screening and molten salt reactors, where their resistance to radiation and molten fluorides is being reviewed.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O FIVE) are being applied to SiC surface areas to even more enhance chemical inertness and stop silicon diffusion in ultra-high-purity procedures.
Additive production of SiC parts utilizing binder jetting or stereolithography is under advancement, encouraging facility geometries and quick prototyping for specialized crucible styles.
As demand grows for energy-efficient, long lasting, and contamination-free high-temperature handling, silicon carbide crucibles will remain a cornerstone technology in innovative products making.
To conclude, silicon carbide crucibles stand for a crucial enabling part in high-temperature industrial and scientific procedures.
Their unmatched mix of thermal stability, mechanical toughness, and chemical resistance makes them the product of selection for applications where efficiency and integrity are extremely important.
