1. Fundamentals of Foam Generation and the Duty in Lightweight Concrete Systems
1.1 Concepts of Air Entrainment and Mobile Framework Formation
(Lightweight Concrete Foam Generators)
Lightweight concrete, a class of construction products characterized by lowered thickness and improved thermal insulation, relies fundamentally on the regulated introduction of air or gas spaces within a cementitious matrix– a process known as foaming.

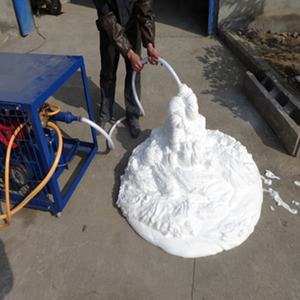

The creation of these uniformly distributed, secure air cells is accomplished with the use of a specialized device called a foam generator, which creates penalty, microscale bubbles that are subsequently mixed right into the concrete slurry.
These bubbles, normally ranging from 50 to 500 micrometers in size, come to be permanently entrained upon cement hydration, leading to a mobile concrete structure with considerably lower device weight– typically between 300 kg/m three and 1,800 kg/m SIX– contrasted to standard concrete (~ 2,400 kg/m TWO).
The foam generator is not merely a complementary tool yet an essential design element that establishes the high quality, uniformity, and efficiency of the final lightweight concrete item.
The procedure begins with a liquid foaming agent, typically a protein-based or synthetic surfactant solution, which is introduced into the generator where it is mechanically or pneumatically dispersed into a dense foam via high shear or pressed air injection.
The stability and bubble dimension distribution of the generated foam straight affect vital product homes such as compressive strength, thermal conductivity, and workability.
1.2 Classification and Operational Mechanisms of Foam Generators
Foam generators are extensively categorized right into 3 primary kinds based upon their functional principles: low-pressure (or wet-film), high-pressure (or dynamic), and rotary (or centrifugal) systems.
Low-pressure generators utilize a permeable medium– such as a great mesh, textile, or ceramic plate– where compressed air is forced, producing bubbles as the foaming service flows over the surface area.
This method creates reasonably big, much less uniform bubbles and is commonly used for lower-grade applications where accurate control is much less essential.
High-pressure systems, on the other hand, employ a nozzle-based design where a high-velocity stream of pressed air shears the foaming fluid into a fine, homogeneous foam with slim bubble size distribution.
These systems provide exceptional control over foam thickness and stability, making them excellent for structural-grade light-weight concrete and precast applications.
( Lightweight Concrete Foam Generators)
Rotating foam generators use a spinning disk or drum that flings the foaming remedy right into a stream of air, developing bubbles with mechanical diffusion.
While less specific than high-pressure systems, rotating generators are valued for their toughness, convenience of upkeep, and continual output, suitable for large-scale on-site putting procedures.
The choice of foam generator type relies on project-specific needs, including wanted concrete thickness, manufacturing quantity, and efficiency requirements.
2. Product Scientific Research Behind Foam Security and Concrete Performance
2.1 Foaming Agents and Interfacial Chemistry
The efficiency of a foam generator is inherently connected to the chemical structure and physical habits of the foaming representative.
Foaming agents are surfactants that minimize the surface stress of water, making it possible for the formation of secure air-liquid user interfaces.
Protein-based representatives, derived from hydrolyzed keratin or albumin, produce sturdy, elastic foam movies with exceptional security and are typically preferred in architectural applications.
Synthetic agents, such as alkyl sulfonates or ethoxylated alcohols, offer faster foam generation and reduced price yet might generate less steady bubbles under long term mixing or unfavorable ecological conditions.
The molecular framework of the surfactant determines the thickness and mechanical toughness of the lamellae (thin fluid movies) bordering each bubble, which must stand up to coalescence and drainage during mixing and treating.
Ingredients such as viscosity modifiers, stabilizers, and pH buffers are often incorporated into foaming solutions to boost foam persistence and compatibility with cement chemistry.
2.2 Impact of Foam Characteristics on Concrete Properties
The physical features of the created foam– bubble size, size distribution, air web content, and foam thickness– straight dictate the macroscopic behavior of light-weight concrete.
Smaller, uniformly dispersed bubbles boost mechanical stamina by lessening anxiety focus points and developing a much more homogeneous microstructure.
On the other hand, larger or irregular bubbles can serve as flaws, lowering compressive toughness and boosting leaks in the structure.
Foam stability is similarly essential; early collapse or coalescence during mixing leads to non-uniform thickness, segregation, and decreased insulation efficiency.
The air-void system also impacts thermal conductivity, with finer, closed-cell frameworks supplying superior insulation because of caught air’s reduced thermal diffusivity.
Additionally, the water content of the foam affects the water-cement proportion of the last mix, demanding precise calibration to stay clear of weakening the concrete matrix or postponing hydration.
Advanced foam generators currently include real-time monitoring and responses systems to preserve regular foam outcome, making certain reproducibility throughout sets.
3. Integration in Modern Construction and Industrial Applications
3.1 Architectural and Non-Structural Uses Foamed Concrete
Light-weight concrete produced by means of foam generators is employed across a broad range of building and construction applications, ranging from insulation panels and void filling to load-bearing walls and pavement systems.
In building envelopes, frothed concrete provides superb thermal and acoustic insulation, contributing to energy-efficient styles and decreased cooling and heating loads.
Its low density also decreases structural dead tons, allowing for smaller sized structures and longer spans in high-rise and bridge construction.
In civil engineering, it is utilized for trench backfilling, tunneling, and incline stablizing, where its self-leveling and low-stress qualities stop ground disruption and boost safety and security.
Precast makers utilize high-precision foam generators to produce lightweight blocks, panels, and architectural aspects with limited dimensional resistances and regular quality.
Additionally, foamed concrete displays intrinsic fire resistance due to its low thermal conductivity and lack of natural components, making it ideal for fire-rated assemblies and passive fire protection systems.
3.2 Automation, Scalability, and On-Site Manufacturing Systems
Modern construction demands fast, scalable, and trustworthy manufacturing of lightweight concrete, driving the integration of foam generators right into automatic batching and pumping systems.
Completely automated plants can synchronize foam generation with concrete blending, water application, and additive injection, making it possible for continual manufacturing with marginal human intervention.
Mobile foam generator devices are progressively released on construction sites, permitting on-demand construction of foamed concrete directly at the factor of use, lowering transport prices and product waste.
These systems are often equipped with digital controls, remote monitoring, and data logging capacities to make sure conformity with engineering requirements and high quality standards.
The scalability of foam generation technology– from small mobile devices to industrial-scale systems– sustains its adoption in both created and emerging markets, promoting lasting structure practices internationally.
4. Technological Improvements and Future Instructions in Foam Generation
4.1 Smart Foam Generators and Real-Time Process Control
Arising technologies in foam generator style focus on enhancing precision, effectiveness, and versatility via digitalization and sensor integration.
Smart foam generators equipped with pressure sensing units, circulation meters, and optical bubble analyzers can dynamically change air-to-liquid ratios and screen foam high quality in real time.
Artificial intelligence algorithms are being discovered to forecast foam habits based upon ecological problems, resources variations, and historic efficiency information.
Such advancements aim to reduce batch-to-batch irregularity and optimize product efficiency, especially in high-stakes applications like nuclear securing or offshore building and construction.
4.2 Sustainability, Environmental Impact, and Green Product Assimilation
As the building and construction industry moves toward decarbonization, foam generators contribute in lowering the ecological impact of concrete.
By decreasing material thickness, less cement is called for each quantity, straight decreasing CO â‚‚ emissions associated with cement production.
Additionally, foamed concrete can integrate auxiliary cementitious products (SCMs) such as fly ash, slag, or silica fume, improving sustainability without compromising efficiency.
Research is also underway to create bio-based lathering agents derived from renewable resources, lessening reliance on petrochemical surfactants.
Future growths might include energy-efficient foam generation methods, integration with carbon capture technologies, and recyclable concrete formulas allowed by stable cellular structures.
To conclude, the lightweight concrete foam generator is even more than a mechanical tool– it is a pivotal enabler of sophisticated material design in contemporary building.
By precisely regulating the design of air voids at the microscale, it changes conventional concrete into a multifunctional, sustainable, and high-performance material.
As modern technology advances, foam generators will certainly remain to drive technology in structure science, infrastructure resilience, and ecological stewardship.
