1. Product Science and Structural Properties
1.1 Crystal Framework and Chemical Security

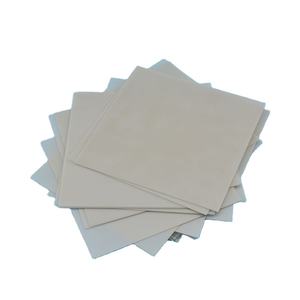

(Aluminum Nitride Ceramic Substrates)
Light weight aluminum nitride (AlN) is a broad bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, made up of rotating layers of light weight aluminum and nitrogen atoms bound via strong covalent communications.
This durable atomic arrangement endows AlN with exceptional thermal stability, preserving structural integrity approximately 2200 ° C in inert atmospheres and standing up to decomposition under extreme thermal biking.
Unlike alumina (Al ₂ O FOUR), AlN is chemically inert to thaw metals and numerous reactive gases, making it ideal for extreme atmospheres such as semiconductor processing chambers and high-temperature heating systems.
Its high resistance to oxidation– creating only a slim protective Al two O two layer at surface upon direct exposure to air– makes certain lasting dependability without substantial deterioration of mass buildings.
In addition, AlN shows exceptional electric insulation with a resistivity surpassing 10 ¹⁴ Ω · centimeters and a dielectric strength over 30 kV/mm, critical for high-voltage applications.
1.2 Thermal Conductivity and Electronic Characteristics
The most defining function of aluminum nitride is its superior thermal conductivity, commonly ranging from 140 to 180 W/(m · K )for commercial-grade substrates– over 5 times higher than that of alumina (≈ 30 W/(m · K)).
This efficiency stems from the low atomic mass of nitrogen and aluminum, combined with solid bonding and very little point issues, which enable efficient phonon transport with the lattice.
Nevertheless, oxygen pollutants are especially detrimental; even trace quantities (above 100 ppm) alternative to nitrogen sites, producing aluminum vacancies and spreading phonons, consequently dramatically reducing thermal conductivity.
High-purity AlN powders synthesized by means of carbothermal reduction or direct nitridation are necessary to achieve optimal heat dissipation.
Despite being an electric insulator, AlN’s piezoelectric and pyroelectric residential properties make it valuable in sensing units and acoustic wave devices, while its broad bandgap (~ 6.2 eV) sustains operation in high-power and high-frequency digital systems.
2. Construction Procedures and Manufacturing Obstacles
( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Techniques
Producing high-performance AlN substratums begins with the synthesis of ultra-fine, high-purity powder, generally attained with reactions such as Al Two O ₃ + 3C + N TWO → 2AlN + 3CO (carbothermal decrease) or direct nitridation of light weight aluminum steel: 2Al + N ₂ → 2AlN.
The resulting powder needs to be very carefully milled and doped with sintering help like Y ₂ O SIX, CaO, or uncommon planet oxides to advertise densification at temperature levels in between 1700 ° C and 1900 ° C under nitrogen atmosphere.
These additives form short-term fluid phases that boost grain limit diffusion, enabling full densification (> 99% theoretical thickness) while decreasing oxygen contamination.
Post-sintering annealing in carbon-rich environments can even more decrease oxygen material by getting rid of intergranular oxides, thereby recovering peak thermal conductivity.
Accomplishing consistent microstructure with regulated grain size is crucial to stabilize mechanical toughness, thermal performance, and manufacturability.
2.2 Substratum Shaping and Metallization
As soon as sintered, AlN ceramics are precision-ground and lapped to meet tight dimensional tolerances needed for digital product packaging, typically down to micrometer-level flatness.
Through-hole boring, laser cutting, and surface patterning enable integration into multilayer packages and crossbreed circuits.
An essential action in substratum manufacture is metallization– the application of conductive layers (typically tungsten, molybdenum, or copper) by means of procedures such as thick-film printing, thin-film sputtering, or straight bonding of copper (DBC).
For DBC, copper aluminum foils are bound to AlN surfaces at raised temperatures in a controlled environment, creating a strong interface appropriate for high-current applications.
Alternate techniques like energetic metal brazing (AMB) make use of titanium-containing solders to improve bond and thermal fatigue resistance, especially under repeated power cycling.
Proper interfacial engineering ensures reduced thermal resistance and high mechanical reliability in running gadgets.
3. Efficiency Advantages in Electronic Systems
3.1 Thermal Administration in Power Electronics
AlN substrates excel in taking care of warm created by high-power semiconductor tools such as IGBTs, MOSFETs, and RF amplifiers made use of in electric lorries, renewable resource inverters, and telecoms infrastructure.
Efficient warm extraction avoids local hotspots, reduces thermal anxiety, and expands tool lifetime by alleviating electromigration and delamination dangers.
Compared to conventional Al two O ₃ substrates, AlN enables smaller plan sizes and higher power densities as a result of its superior thermal conductivity, enabling designers to press efficiency boundaries without jeopardizing integrity.
In LED illumination and laser diodes, where joint temperature level directly impacts efficiency and shade stability, AlN substrates dramatically improve luminous result and functional lifespan.
Its coefficient of thermal expansion (CTE ≈ 4.5 ppm/K) likewise very closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), lessening thermo-mechanical stress and anxiety during thermal cycling.
3.2 Electric and Mechanical Reliability
Past thermal efficiency, AlN supplies low dielectric loss (tan δ < 0.0005) and stable permittivity (εᵣ ≈ 8.9) across a wide frequency array, making it suitable for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature avoids dampness ingress, eliminating deterioration threats in damp environments– a vital advantage over organic substratums.
Mechanically, AlN possesses high flexural stamina (300– 400 MPa) and solidity (HV ≈ 1200), making sure longevity during handling, assembly, and area procedure.
These characteristics collectively add to boosted system integrity, lowered failing rates, and reduced total cost of ownership in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Defense Solutions
AlN ceramic substrates are currently common in innovative power modules for commercial motor drives, wind and solar inverters, and onboard battery chargers in electrical and hybrid cars.
In aerospace and protection, they support radar systems, digital warfare devices, and satellite interactions, where efficiency under extreme conditions is non-negotiable.
Medical imaging equipment, consisting of X-ray generators and MRI systems, additionally take advantage of AlN’s radiation resistance and signal honesty.
As electrification patterns speed up throughout transport and power industries, need for AlN substrates remains to expand, driven by the demand for compact, efficient, and reliable power electronic devices.
4.2 Emerging Combination and Sustainable Growth
Future improvements focus on integrating AlN into three-dimensional packaging architectures, ingrained passive elements, and heterogeneous assimilation systems combining Si, SiC, and GaN tools.
Research right into nanostructured AlN movies and single-crystal substrates intends to further increase thermal conductivity towards academic restrictions (> 300 W/(m · K)) for next-generation quantum and optoelectronic tools.
Efforts to lower manufacturing prices via scalable powder synthesis, additive manufacturing of intricate ceramic structures, and recycling of scrap AlN are gaining momentum to boost sustainability.
Furthermore, modeling devices utilizing finite component analysis (FEA) and artificial intelligence are being utilized to optimize substrate style for particular thermal and electric lots.
In conclusion, aluminum nitride ceramic substratums represent a keystone technology in modern-day electronic devices, uniquely linking the space between electrical insulation and extraordinary thermal conduction.
Their duty in enabling high-efficiency, high-reliability power systems emphasizes their calculated importance in the ongoing development of electronic and power technologies.
