1. Product Fundamentals and Architectural Characteristics of Alumina Ceramics
1.1 Make-up, Crystallography, and Stage Security

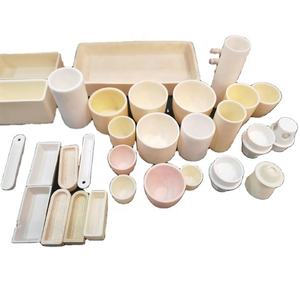

(Alumina Crucible)
Alumina crucibles are precision-engineered ceramic vessels fabricated mostly from light weight aluminum oxide (Al ₂ O SIX), among one of the most commonly made use of sophisticated porcelains due to its exceptional mix of thermal, mechanical, and chemical stability.
The leading crystalline phase in these crucibles is alpha-alumina (α-Al two O THREE), which belongs to the corundum structure– a hexagonal close-packed arrangement of oxygen ions with two-thirds of the octahedral interstices inhabited by trivalent aluminum ions.
This dense atomic packing leads to strong ionic and covalent bonding, conferring high melting factor (2072 ° C), exceptional solidity (9 on the Mohs scale), and resistance to sneak and contortion at elevated temperatures.
While pure alumina is optimal for a lot of applications, trace dopants such as magnesium oxide (MgO) are typically added during sintering to prevent grain growth and enhance microstructural uniformity, thereby improving mechanical toughness and thermal shock resistance.
The phase purity of α-Al ₂ O ₃ is crucial; transitional alumina phases (e.g., γ, δ, θ) that form at lower temperature levels are metastable and undertake volume changes upon conversion to alpha stage, potentially causing breaking or failing under thermal cycling.
1.2 Microstructure and Porosity Control in Crucible Fabrication
The efficiency of an alumina crucible is greatly affected by its microstructure, which is determined throughout powder handling, creating, and sintering phases.
High-purity alumina powders (usually 99.5% to 99.99% Al Two O FOUR) are formed right into crucible forms using strategies such as uniaxial pressing, isostatic pressing, or slip spreading, adhered to by sintering at temperatures in between 1500 ° C and 1700 ° C.
Throughout sintering, diffusion mechanisms drive bit coalescence, lowering porosity and increasing thickness– preferably accomplishing > 99% theoretical density to decrease leaks in the structure and chemical infiltration.
Fine-grained microstructures boost mechanical toughness and resistance to thermal anxiety, while controlled porosity (in some specific qualities) can improve thermal shock tolerance by dissipating strain energy.
Surface surface is additionally critical: a smooth indoor surface area lessens nucleation websites for undesirable responses and promotes very easy elimination of strengthened materials after processing.
Crucible geometry– consisting of wall thickness, curvature, and base design– is optimized to stabilize warm transfer performance, structural integrity, and resistance to thermal slopes during quick home heating or air conditioning.
( Alumina Crucible)
2. Thermal and Chemical Resistance in Extreme Environments
2.1 High-Temperature Performance and Thermal Shock Actions
Alumina crucibles are regularly used in atmospheres exceeding 1600 ° C, making them important in high-temperature materials research, metal refining, and crystal development processes.
They exhibit reduced thermal conductivity (~ 30 W/m · K), which, while restricting warm transfer rates, additionally gives a degree of thermal insulation and aids keep temperature level gradients needed for directional solidification or zone melting.
A vital difficulty is thermal shock resistance– the capacity to stand up to abrupt temperature adjustments without breaking.
Although alumina has a relatively low coefficient of thermal growth (~ 8 × 10 ⁻⁶/ K), its high tightness and brittleness make it at risk to crack when subjected to high thermal gradients, particularly during quick home heating or quenching.
To reduce this, individuals are encouraged to comply with controlled ramping protocols, preheat crucibles progressively, and avoid direct exposure to open flames or cold surface areas.
Advanced grades integrate zirconia (ZrO ₂) toughening or graded compositions to boost split resistance via devices such as stage makeover toughening or residual compressive stress generation.
2.2 Chemical Inertness and Compatibility with Reactive Melts
Among the defining advantages of alumina crucibles is their chemical inertness toward a variety of molten steels, oxides, and salts.
They are very immune to basic slags, liquified glasses, and numerous metal alloys, including iron, nickel, cobalt, and their oxides, that makes them suitable for usage in metallurgical analysis, thermogravimetric experiments, and ceramic sintering.
Nonetheless, they are not widely inert: alumina reacts with highly acidic changes such as phosphoric acid or boron trioxide at high temperatures, and it can be rusted by molten antacid like salt hydroxide or potassium carbonate.
Particularly critical is their interaction with light weight aluminum steel and aluminum-rich alloys, which can minimize Al two O four via the reaction: 2Al + Al Two O ₃ → 3Al two O (suboxide), resulting in pitting and eventual failure.
Likewise, titanium, zirconium, and rare-earth steels display high reactivity with alumina, developing aluminides or complex oxides that jeopardize crucible integrity and contaminate the thaw.
For such applications, alternate crucible materials like yttria-stabilized zirconia (YSZ), boron nitride (BN), or molybdenum are favored.
3. Applications in Scientific Research Study and Industrial Handling
3.1 Role in Products Synthesis and Crystal Development
Alumina crucibles are main to various high-temperature synthesis routes, consisting of solid-state reactions, change growth, and melt processing of functional ceramics and intermetallics.
In solid-state chemistry, they function as inert containers for calcining powders, synthesizing phosphors, or preparing forerunner materials for lithium-ion battery cathodes.
For crystal development strategies such as the Czochralski or Bridgman approaches, alumina crucibles are made use of to contain molten oxides like yttrium light weight aluminum garnet (YAG) or neodymium-doped glasses for laser applications.
Their high pureness makes sure minimal contamination of the growing crystal, while their dimensional stability supports reproducible development problems over expanded periods.
In flux growth, where single crystals are expanded from a high-temperature solvent, alumina crucibles should resist dissolution by the flux medium– frequently borates or molybdates– needing careful selection of crucible grade and handling criteria.
3.2 Use in Analytical Chemistry and Industrial Melting Procedures
In analytical laboratories, alumina crucibles are typical devices in thermogravimetric evaluation (TGA) and differential scanning calorimetry (DSC), where exact mass dimensions are made under regulated ambiences and temperature level ramps.
Their non-magnetic nature, high thermal security, and compatibility with inert and oxidizing settings make them perfect for such precision measurements.
In commercial settings, alumina crucibles are used in induction and resistance heating systems for melting rare-earth elements, alloying, and casting procedures, particularly in precious jewelry, oral, and aerospace element manufacturing.
They are also utilized in the manufacturing of technological porcelains, where raw powders are sintered or hot-pressed within alumina setters and crucibles to prevent contamination and guarantee uniform heating.
4. Limitations, Taking Care Of Practices, and Future Product Enhancements
4.1 Functional Restrictions and Ideal Practices for Longevity
Regardless of their effectiveness, alumina crucibles have distinct functional limits that have to be respected to ensure security and performance.
Thermal shock stays one of the most common root cause of failure; therefore, steady heating and cooling down cycles are essential, especially when transitioning via the 400– 600 ° C variety where recurring stress and anxieties can build up.
Mechanical damage from mishandling, thermal cycling, or call with hard products can initiate microcracks that circulate under anxiety.
Cleaning up ought to be done carefully– staying clear of thermal quenching or rough methods– and used crucibles ought to be evaluated for signs of spalling, staining, or deformation prior to reuse.
Cross-contamination is another issue: crucibles used for responsive or hazardous products must not be repurposed for high-purity synthesis without comprehensive cleaning or must be discarded.
4.2 Emerging Fads in Compound and Coated Alumina Solutions
To expand the capacities of traditional alumina crucibles, scientists are creating composite and functionally graded products.
Instances include alumina-zirconia (Al two O THREE-ZrO TWO) composites that enhance strength and thermal shock resistance, or alumina-silicon carbide (Al two O FOUR-SiC) versions that boost thermal conductivity for even more consistent home heating.
Surface coatings with rare-earth oxides (e.g., yttria or scandia) are being discovered to produce a diffusion obstacle versus reactive metals, consequently broadening the variety of compatible melts.
Additionally, additive manufacturing of alumina components is arising, making it possible for custom crucible geometries with interior channels for temperature level surveillance or gas flow, opening up new possibilities in process control and reactor style.
Finally, alumina crucibles remain a foundation of high-temperature innovation, valued for their reliability, pureness, and adaptability across clinical and commercial domain names.
Their continued evolution via microstructural design and crossbreed product layout guarantees that they will certainly stay crucial tools in the advancement of products science, power technologies, and progressed production.
