1. Product Basics and Crystallographic Residence
1.1 Stage Composition and Polymorphic Behavior

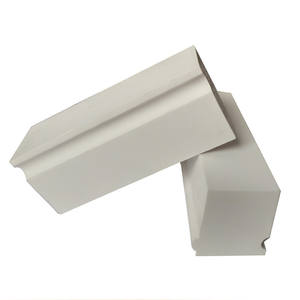

(Alumina Ceramic Blocks)
Alumina (Al ₂ O SIX), especially in its α-phase type, is one of the most commonly used technical ceramics due to its exceptional equilibrium of mechanical toughness, chemical inertness, and thermal security.
While aluminum oxide exists in several metastable stages (γ, δ, θ, κ), α-alumina is the thermodynamically stable crystalline framework at heats, defined by a thick hexagonal close-packed (HCP) plan of oxygen ions with light weight aluminum cations inhabiting two-thirds of the octahedral interstitial websites.
This purchased structure, known as corundum, gives high lattice energy and strong ionic-covalent bonding, resulting in a melting point of approximately 2054 ° C and resistance to phase makeover under severe thermal conditions.
The shift from transitional aluminas to α-Al two O three commonly occurs over 1100 ° C and is come with by significant volume shrinkage and loss of area, making stage control important during sintering.
High-purity α-alumina blocks (> 99.5% Al Two O FOUR) show remarkable performance in severe settings, while lower-grade compositions (90– 95%) might consist of additional phases such as mullite or lustrous grain boundary phases for affordable applications.
1.2 Microstructure and Mechanical Honesty
The efficiency of alumina ceramic blocks is greatly affected by microstructural functions consisting of grain size, porosity, and grain limit communication.
Fine-grained microstructures (grain size < 5 µm) generally supply higher flexural toughness (as much as 400 MPa) and enhanced crack strength compared to grainy equivalents, as smaller grains restrain split breeding.
Porosity, even at low levels (1– 5%), considerably lowers mechanical strength and thermal conductivity, necessitating full densification with pressure-assisted sintering approaches such as hot pushing or warm isostatic pressing (HIP).
Ingredients like MgO are often introduced in trace quantities (≈ 0.1 wt%) to inhibit irregular grain growth during sintering, making certain consistent microstructure and dimensional security.
The resulting ceramic blocks display high solidity (≈ 1800 HV), excellent wear resistance, and low creep rates at raised temperatures, making them appropriate for load-bearing and abrasive environments.
2. Production and Processing Techniques

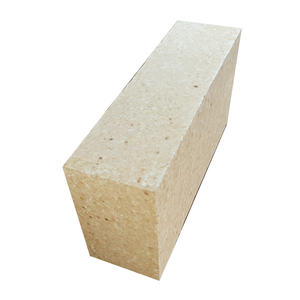

( Alumina Ceramic Blocks)
2.1 Powder Preparation and Shaping Techniques
The manufacturing of alumina ceramic blocks begins with high-purity alumina powders stemmed from calcined bauxite via the Bayer process or manufactured with rainfall or sol-gel routes for greater pureness.
Powders are milled to accomplish slim particle size circulation, improving packaging density and sinterability.
Forming right into near-net geometries is accomplished via different creating techniques: uniaxial pushing for basic blocks, isostatic pushing for consistent density in intricate forms, extrusion for lengthy areas, and slide casting for elaborate or big parts.
Each technique affects green body density and homogeneity, which directly effect final properties after sintering.
For high-performance applications, progressed forming such as tape casting or gel-casting may be employed to accomplish remarkable dimensional control and microstructural harmony.
2.2 Sintering and Post-Processing
Sintering in air at temperatures between 1600 ° C and 1750 ° C makes it possible for diffusion-driven densification, where fragment necks grow and pores diminish, causing a totally thick ceramic body.
Atmosphere control and specific thermal accounts are essential to protect against bloating, bending, or differential shrinkage.
Post-sintering procedures consist of ruby grinding, washing, and brightening to accomplish limited tolerances and smooth surface finishes needed in sealing, gliding, or optical applications.
Laser cutting and waterjet machining allow exact modification of block geometry without causing thermal anxiety.
Surface treatments such as alumina finish or plasma splashing can even more enhance wear or corrosion resistance in customized solution problems.
3. Functional Characteristics and Efficiency Metrics
3.1 Thermal and Electrical Behavior
Alumina ceramic blocks show moderate thermal conductivity (20– 35 W/(m · K)), significantly greater than polymers and glasses, allowing reliable warm dissipation in digital and thermal monitoring systems.
They keep architectural stability approximately 1600 ° C in oxidizing ambiences, with reduced thermal expansion (≈ 8 ppm/K), contributing to outstanding thermal shock resistance when correctly made.
Their high electrical resistivity (> 10 ¹⁴ Ω · cm) and dielectric stamina (> 15 kV/mm) make them suitable electrical insulators in high-voltage environments, including power transmission, switchgear, and vacuum systems.
Dielectric consistent (εᵣ ≈ 9– 10) stays secure over a vast frequency range, supporting use in RF and microwave applications.
These residential or commercial properties make it possible for alumina blocks to function dependably in atmospheres where natural materials would break down or stop working.
3.2 Chemical and Ecological Durability
One of the most valuable features of alumina blocks is their exceptional resistance to chemical strike.
They are highly inert to acids (other than hydrofluoric and hot phosphoric acids), antacid (with some solubility in strong caustics at elevated temperatures), and molten salts, making them ideal for chemical processing, semiconductor manufacture, and pollution control tools.
Their non-wetting actions with many molten steels and slags allows usage in crucibles, thermocouple sheaths, and furnace cellular linings.
Furthermore, alumina is non-toxic, biocompatible, and radiation-resistant, broadening its utility right into medical implants, nuclear protecting, and aerospace components.
Minimal outgassing in vacuum cleaner environments better certifies it for ultra-high vacuum (UHV) systems in research study and semiconductor production.
4. Industrial Applications and Technological Assimilation
4.1 Structural and Wear-Resistant Components
Alumina ceramic blocks serve as crucial wear parts in sectors varying from extracting to paper manufacturing.
They are made use of as liners in chutes, hoppers, and cyclones to resist abrasion from slurries, powders, and granular products, dramatically expanding life span contrasted to steel.
In mechanical seals and bearings, alumina blocks offer low rubbing, high solidity, and rust resistance, lowering maintenance and downtime.
Custom-shaped blocks are integrated right into reducing devices, dies, and nozzles where dimensional security and side retention are extremely important.
Their light-weight nature (thickness ≈ 3.9 g/cm FOUR) also contributes to power savings in moving components.
4.2 Advanced Engineering and Emerging Uses
Beyond standard duties, alumina blocks are significantly employed in advanced technological systems.
In electronics, they function as shielding substrates, warm sinks, and laser tooth cavity parts as a result of their thermal and dielectric residential properties.
In energy systems, they serve as strong oxide gas cell (SOFC) components, battery separators, and combination reactor plasma-facing products.
Additive manufacturing of alumina via binder jetting or stereolithography is arising, allowing intricate geometries previously unattainable with conventional developing.
Hybrid frameworks combining alumina with steels or polymers through brazing or co-firing are being developed for multifunctional systems in aerospace and defense.
As product scientific research developments, alumina ceramic blocks remain to evolve from passive structural elements into energetic elements in high-performance, sustainable engineering options.
In recap, alumina ceramic blocks stand for a foundational class of advanced ceramics, integrating durable mechanical performance with phenomenal chemical and thermal security.
Their adaptability across commercial, electronic, and clinical domain names highlights their enduring value in modern-day design and innovation growth.
