1. Product Basics and Microstructural Characteristics
1.1 Structure and Crystallographic Feature of Al ₂ O ₃
(Alumina Ceramic Balls， Alumina Ceramic Balls)

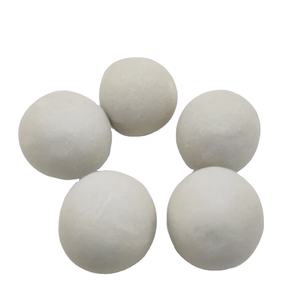

Alumina ceramic rounds are spherical elements fabricated from aluminum oxide (Al two O FIVE), a completely oxidized, polycrystalline ceramic that shows extraordinary solidity, chemical inertness, and thermal stability.
The main crystalline phase in high-performance alumina balls is α-alumina, which takes on a corundum-type hexagonal close-packed framework where light weight aluminum ions occupy two-thirds of the octahedral interstices within an oxygen anion latticework, conferring high latticework energy and resistance to stage improvement.
Industrial-grade alumina balls generally contain 85% to 99.9% Al ₂ O FOUR, with pureness directly influencing mechanical toughness, wear resistance, and corrosion efficiency.
High-purity qualities (≥ 95% Al Two O FOUR) are sintered to near-theoretical density (> 99%) using sophisticated strategies such as pressureless sintering or hot isostatic pressing, decreasing porosity and intergranular flaws that could function as stress and anxiety concentrators.
The resulting microstructure contains fine, equiaxed grains consistently distributed throughout the volume, with grain sizes commonly varying from 1 to 5 micrometers, maximized to balance sturdiness and hardness.
1.2 Mechanical and Physical Home Account
Alumina ceramic rounds are renowned for their severe hardness– determined at around 1800– 2000 HV on the Vickers range– exceeding most steels and rivaling tungsten carbide, making them optimal for wear-intensive atmospheres.
Their high compressive stamina (as much as 2500 MPa) makes certain dimensional security under load, while low elastic contortion enhances accuracy in rolling and grinding applications.
In spite of their brittleness about metals, alumina spheres show exceptional fracture strength for ceramics, specifically when grain development is controlled throughout sintering.
They preserve structural stability across a broad temperature array, from cryogenic problems approximately 1600 ° C in oxidizing environments, much going beyond the thermal limitations of polymer or steel counterparts.
In addition, their reduced thermal development coefficient (~ 8 × 10 ⁻⁶/ K) reduces thermal shock vulnerability, enabling usage in swiftly fluctuating thermal settings such as kilns and warmth exchangers.
2. Manufacturing Processes and Quality Control
()
2.1 Forming and Sintering Techniques
The manufacturing of alumina ceramic balls starts with high-purity alumina powder, typically originated from calcined bauxite or chemically precipitated hydrates, which is crushed to accomplish submicron fragment dimension and slim size distribution.
Powders are then created right into round environment-friendly bodies making use of techniques such as extrusion-spheronization, spray drying, or round developing in turning frying pans, depending upon the wanted size and batch range.
After forming, environment-friendly spheres undertake a binder exhaustion stage followed by high-temperature sintering, generally between 1500 ° C and 1700 ° C, where diffusion mechanisms drive densification and grain coarsening.
Accurate control of sintering environment (air or managed oxygen partial pressure), home heating price, and dwell time is essential to attaining uniform contraction, spherical geometry, and very little interior issues.
For ultra-high-performance applications, post-sintering treatments such as warm isostatic pressing (HIP) may be applied to get rid of recurring microporosity and additionally improve mechanical reliability.
2.2 Accuracy Finishing and Metrological Verification
Adhering to sintering, alumina spheres are ground and polished using diamond-impregnated media to attain limited dimensional resistances and surface coatings equivalent to bearing-grade steel rounds.
Surface roughness is generally minimized to less than 0.05 μm Ra, reducing rubbing and put on in dynamic contact circumstances.
Vital top quality specifications include sphericity (discrepancy from perfect roundness), size variant, surface stability, and density uniformity, all of which are gauged using optical interferometry, coordinate gauging devices (CMM), and laser profilometry.
International requirements such as ISO 3290 and ANSI/ABMA define resistance grades for ceramic balls used in bearings, making sure interchangeability and efficiency uniformity throughout suppliers.
Non-destructive testing approaches like ultrasonic examination or X-ray microtomography are employed to identify interior fractures, voids, or additions that might jeopardize lasting integrity.
3. Functional Benefits Over Metallic and Polymer Counterparts
3.1 Chemical and Corrosion Resistance in Harsh Environments
Among one of the most substantial benefits of alumina ceramic rounds is their exceptional resistance to chemical assault.
They continue to be inert in the existence of strong acids (except hydrofluoric acid), alkalis, natural solvents, and saline remedies, making them suitable for usage in chemical processing, pharmaceutical manufacturing, and aquatic applications where metal components would wear away rapidly.
This inertness prevents contamination of delicate media, an important consider food processing, semiconductor manufacture, and biomedical tools.
Unlike steel spheres, alumina does not generate corrosion or metallic ions, making sure procedure purity and decreasing maintenance frequency.
Their non-magnetic nature additionally extends applicability to MRI-compatible devices and electronic production line where magnetic interference must be avoided.
3.2 Use Resistance and Long Service Life
In abrasive or high-cycle environments, alumina ceramic rounds show wear prices orders of size less than steel or polymer options.
This extraordinary sturdiness converts right into prolonged service intervals, reduced downtime, and lower overall cost of possession regardless of higher preliminary purchase expenses.
They are widely used as grinding media in round mills for pigment dispersion, mineral handling, and nanomaterial synthesis, where their inertness protects against contamination and their solidity guarantees efficient fragment dimension reduction.
In mechanical seals and valve parts, alumina rounds preserve limited resistances over countless cycles, withstanding disintegration from particulate-laden fluids.
4. Industrial and Arising Applications
4.1 Bearings, Shutoffs, and Fluid Handling Equipments
Alumina ceramic balls are important to hybrid ball bearings, where they are coupled with steel or silicon nitride races to incorporate the reduced thickness and corrosion resistance of porcelains with the sturdiness of metals.
Their reduced density (~ 3.9 g/cm ³, regarding 40% lighter than steel) decreases centrifugal filling at high rotational rates, allowing much faster operation with lower warmth generation and boosted power effectiveness.
Such bearings are used in high-speed pins, oral handpieces, and aerospace systems where dependability under extreme conditions is vital.
In liquid control applications, alumina spheres work as check shutoff elements in pumps and metering gadgets, particularly for aggressive chemicals, high-purity water, or ultra-high vacuum systems.
Their smooth surface and dimensional stability guarantee repeatable sealing performance and resistance to galling or taking.
4.2 Biomedical, Energy, and Advanced Modern Technology Makes Use Of
Past traditional commercial duties, alumina ceramic rounds are discovering usage in biomedical implants and analysis devices due to their biocompatibility and radiolucency.
They are utilized in man-made joints and dental prosthetics where wear particles must be reduced to stop inflammatory feedbacks.
In energy systems, they work as inert tracers in storage tank characterization or as heat-stable components in focused solar energy and fuel cell assemblies.
Study is likewise exploring functionalized alumina spheres for catalytic assistance, sensor elements, and precision calibration requirements in width.
In recap, alumina ceramic rounds exhibit just how advanced porcelains link the space in between architectural effectiveness and practical accuracy.
Their one-of-a-kind mix of hardness, chemical inertness, thermal stability, and dimensional precision makes them vital popular engineering systems across diverse markets.
As making methods remain to improve, their performance and application range are anticipated to broaden even more into next-generation technologies.
