1.1 Innate Features of Silicon Carbide

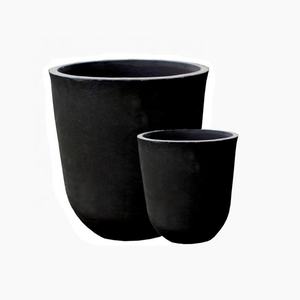

(Silicon Carbide Crucibles)

Silicon carbide (SiC) is a covalent ceramic substance composed of silicon and carbon atoms set up in a tetrahedral lattice framework, largely existing in over 250 polytypic types, with 6H, 4H, and 3C being one of the most technically relevant.

Its solid directional bonding conveys extraordinary hardness (Mohs ~ 9.5), high thermal conductivity (80– 120 W/(m · K )for pure single crystals), and impressive chemical inertness, making it among the most robust materials for severe environments.

The broad bandgap (2.9– 3.3 eV) makes certain outstanding electrical insulation at area temperature level and high resistance to radiation damage, while its low thermal expansion coefficient (~ 4.0 × 10 ⁻⁶/ K) adds to superior thermal shock resistance.

These inherent residential or commercial properties are maintained even at temperatures going beyond 1600 ° C, allowing SiC to keep structural integrity under long term direct exposure to thaw steels, slags, and responsive gases.

Unlike oxide porcelains such as alumina, SiC does not react easily with carbon or form low-melting eutectics in reducing atmospheres, a crucial benefit in metallurgical and semiconductor handling.

When fabricated right into crucibles– vessels created to include and heat products– SiC outmatches conventional materials like quartz, graphite, and alumina in both life expectancy and procedure reliability.

1.2 Microstructure and Mechanical Stability

The efficiency of SiC crucibles is carefully linked to their microstructure, which relies on the manufacturing technique and sintering ingredients used.

Refractory-grade crucibles are normally produced using reaction bonding, where permeable carbon preforms are infiltrated with liquified silicon, forming β-SiC via the reaction Si(l) + C(s) → SiC(s).

This process produces a composite structure of primary SiC with residual complimentary silicon (5– 10%), which improves thermal conductivity yet may limit usage above 1414 ° C(the melting point of silicon).

Additionally, completely sintered SiC crucibles are made via solid-state or liquid-phase sintering using boron and carbon or alumina-yttria ingredients, attaining near-theoretical density and greater purity.

These display superior creep resistance and oxidation stability however are more pricey and difficult to produce in plus sizes.

( Silicon Carbide Crucibles)

The fine-grained, interlocking microstructure of sintered SiC gives outstanding resistance to thermal fatigue and mechanical disintegration, vital when dealing with molten silicon, germanium, or III-V compounds in crystal growth processes.

Grain border design, including the control of second stages and porosity, plays an essential role in identifying long-term resilience under cyclic heating and aggressive chemical environments.

2. Thermal Efficiency and Environmental Resistance

2.1 Thermal Conductivity and Heat Circulation

One of the specifying benefits of SiC crucibles is their high thermal conductivity, which makes it possible for fast and uniform warmth transfer during high-temperature handling.

As opposed to low-conductivity products like merged silica (1– 2 W/(m · K)), SiC successfully disperses thermal energy throughout the crucible wall, decreasing local hot spots and thermal gradients.

This uniformity is vital in procedures such as directional solidification of multicrystalline silicon for photovoltaics, where temperature homogeneity directly affects crystal quality and defect density.

The combination of high conductivity and reduced thermal expansion results in an exceptionally high thermal shock criterion (R = k(1 − ν)α/ σ), making SiC crucibles resistant to splitting during rapid home heating or cooling down cycles.

This permits faster furnace ramp prices, boosted throughput, and decreased downtime because of crucible failure.

In addition, the material’s capability to endure repeated thermal cycling without considerable deterioration makes it perfect for batch handling in commercial heaters running above 1500 ° C.

2.2 Oxidation and Chemical Compatibility

At elevated temperatures in air, SiC undertakes passive oxidation, creating a protective layer of amorphous silica (SiO ₂) on its surface area: SiC + 3/2 O ₂ → SiO ₂ + CO.

This glassy layer densifies at high temperatures, acting as a diffusion obstacle that slows down further oxidation and maintains the underlying ceramic structure.

Nevertheless, in decreasing ambiences or vacuum conditions– typical in semiconductor and steel refining– oxidation is suppressed, and SiC remains chemically stable versus molten silicon, light weight aluminum, and several slags.

It withstands dissolution and response with molten silicon up to 1410 ° C, although long term exposure can bring about slight carbon pickup or user interface roughening.

Most importantly, SiC does not introduce metallic impurities right into sensitive thaws, an essential need for electronic-grade silicon production where contamination by Fe, Cu, or Cr needs to be maintained below ppb degrees.

Nonetheless, care must be taken when processing alkaline planet metals or highly responsive oxides, as some can wear away SiC at extreme temperature levels.

3. Manufacturing Processes and Quality Assurance

3.1 Manufacture Methods and Dimensional Control

The production of SiC crucibles entails shaping, drying out, and high-temperature sintering or seepage, with approaches chosen based upon needed purity, dimension, and application.

Common forming strategies consist of isostatic pushing, extrusion, and slip spreading, each using various degrees of dimensional accuracy and microstructural harmony.

For large crucibles used in photovoltaic or pv ingot spreading, isostatic pushing ensures consistent wall density and density, reducing the risk of uneven thermal expansion and failing.

Reaction-bonded SiC (RBSC) crucibles are affordable and extensively used in shops and solar sectors, though recurring silicon restrictions optimal service temperature.

Sintered SiC (SSiC) variations, while more expensive, deal remarkable pureness, toughness, and resistance to chemical strike, making them appropriate for high-value applications like GaAs or InP crystal development.

Precision machining after sintering may be needed to accomplish tight tolerances, especially for crucibles made use of in upright slope freeze (VGF) or Czochralski (CZ) systems.

Surface area finishing is important to lessen nucleation sites for issues and ensure smooth thaw circulation during casting.

3.2 Quality Control and Efficiency Recognition

Extensive quality control is important to ensure dependability and longevity of SiC crucibles under demanding functional problems.

Non-destructive assessment techniques such as ultrasonic testing and X-ray tomography are utilized to discover inner splits, gaps, or density variants.

Chemical analysis through XRF or ICP-MS verifies low degrees of metallic impurities, while thermal conductivity and flexural strength are measured to verify product uniformity.

Crucibles are usually based on substitute thermal cycling tests prior to delivery to identify prospective failing settings.

Set traceability and certification are standard in semiconductor and aerospace supply chains, where element failing can lead to costly production losses.

4. Applications and Technical Influence

4.1 Semiconductor and Photovoltaic Industries

Silicon carbide crucibles play a crucial role in the manufacturing of high-purity silicon for both microelectronics and solar cells.

In directional solidification heaters for multicrystalline solar ingots, big SiC crucibles function as the key container for liquified silicon, sustaining temperatures over 1500 ° C for multiple cycles.

Their chemical inertness stops contamination, while their thermal security makes sure uniform solidification fronts, resulting in higher-quality wafers with fewer misplacements and grain borders.

Some manufacturers layer the internal surface area with silicon nitride or silica to better lower attachment and facilitate ingot launch after cooling.

In research-scale Czochralski development of substance semiconductors, smaller SiC crucibles are utilized to hold melts of GaAs, InSb, or CdTe, where very little sensitivity and dimensional stability are paramount.

4.2 Metallurgy, Factory, and Arising Technologies

Beyond semiconductors, SiC crucibles are vital in steel refining, alloy preparation, and laboratory-scale melting procedures including light weight aluminum, copper, and rare-earth elements.

Their resistance to thermal shock and erosion makes them ideal for induction and resistance furnaces in factories, where they outlast graphite and alumina options by several cycles.

In additive production of reactive metals, SiC containers are made use of in vacuum cleaner induction melting to stop crucible malfunction and contamination.

Arising applications consist of molten salt activators and focused solar power systems, where SiC vessels might contain high-temperature salts or fluid steels for thermal power storage.

With continuous developments in sintering modern technology and finish design, SiC crucibles are poised to support next-generation products processing, allowing cleaner, much more reliable, and scalable commercial thermal systems.

In summary, silicon carbide crucibles stand for a critical enabling innovation in high-temperature product synthesis, incorporating exceptional thermal, mechanical, and chemical efficiency in a solitary engineered component.

Their extensive fostering across semiconductor, solar, and metallurgical sectors emphasizes their duty as a keystone of modern industrial ceramics.

5. Distributor

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials and products. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.
Tags: Silicon Carbide Crucibles, Silicon Carbide Ceramic, Silicon Carbide Ceramic Crucibles

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Inherent Residences of Component Phases

(Silicon nitride and silicon carbide composite ceramic)

Silicon nitride (Si six N ₄) and silicon carbide (SiC) are both covalently adhered, non-oxide ceramics renowned for their exceptional efficiency in high-temperature, corrosive, and mechanically demanding settings.

Silicon nitride displays impressive crack strength, thermal shock resistance, and creep security because of its unique microstructure composed of lengthened β-Si five N four grains that allow split deflection and connecting systems.

It preserves toughness up to 1400 ° C and possesses a reasonably low thermal development coefficient (~ 3.2 × 10 ⁻⁶/ K), decreasing thermal tensions during fast temperature changes.

On the other hand, silicon carbide supplies exceptional solidity, thermal conductivity (as much as 120– 150 W/(m · K )for solitary crystals), oxidation resistance, and chemical inertness, making it suitable for abrasive and radiative warmth dissipation applications.

Its large bandgap (~ 3.3 eV for 4H-SiC) likewise confers superb electrical insulation and radiation resistance, helpful in nuclear and semiconductor contexts.

When combined into a composite, these materials display complementary habits: Si six N four improves sturdiness and damages resistance, while SiC enhances thermal management and wear resistance.

The resulting crossbreed ceramic attains an equilibrium unattainable by either stage alone, creating a high-performance structural material customized for severe service conditions.

1.2 Compound Architecture and Microstructural Design

The style of Si two N FOUR– SiC composites involves exact control over stage distribution, grain morphology, and interfacial bonding to make the most of synergistic effects.

Generally, SiC is introduced as great particulate reinforcement (varying from submicron to 1 µm) within a Si six N four matrix, although functionally graded or layered architectures are likewise explored for specialized applications.

Throughout sintering– generally via gas-pressure sintering (GPS) or hot pushing– SiC bits influence the nucleation and development kinetics of β-Si three N four grains, commonly advertising finer and more consistently oriented microstructures.

This improvement enhances mechanical homogeneity and minimizes problem dimension, contributing to improved toughness and dependability.

Interfacial compatibility in between both stages is vital; since both are covalent porcelains with similar crystallographic symmetry and thermal growth behavior, they create meaningful or semi-coherent boundaries that stand up to debonding under load.

Additives such as yttria (Y ₂ O ₃) and alumina (Al two O ₃) are made use of as sintering help to advertise liquid-phase densification of Si five N ₄ without compromising the stability of SiC.

Nevertheless, extreme additional stages can break down high-temperature performance, so composition and handling have to be maximized to reduce glassy grain border movies.

2. Processing Techniques and Densification Obstacles

( Silicon nitride and silicon carbide composite ceramic)

2.1 Powder Prep Work and Shaping Methods

High-quality Si ₃ N ₄– SiC composites start with homogeneous mixing of ultrafine, high-purity powders using wet round milling, attrition milling, or ultrasonic dispersion in organic or liquid media.

Attaining consistent diffusion is crucial to prevent load of SiC, which can serve as anxiety concentrators and lower fracture strength.

Binders and dispersants are included in stabilize suspensions for forming methods such as slip casting, tape spreading, or shot molding, depending on the preferred component geometry.

Eco-friendly bodies are then carefully dried out and debound to remove organics prior to sintering, a process needing regulated home heating rates to stay clear of breaking or deforming.

For near-net-shape manufacturing, additive techniques like binder jetting or stereolithography are emerging, allowing intricate geometries formerly unachievable with standard ceramic handling.

These techniques call for tailored feedstocks with maximized rheology and environment-friendly toughness, frequently entailing polymer-derived porcelains or photosensitive resins loaded with composite powders.

2.2 Sintering Systems and Stage Security

Densification of Si Five N FOUR– SiC composites is challenging because of the strong covalent bonding and restricted self-diffusion of nitrogen and carbon at practical temperatures.

Liquid-phase sintering utilizing rare-earth or alkaline planet oxides (e.g., Y ₂ O ₃, MgO) lowers the eutectic temperature and enhances mass transport through a short-term silicate thaw.

Under gas stress (generally 1– 10 MPa N ₂), this melt facilitates rearrangement, solution-precipitation, and last densification while reducing decomposition of Si ₃ N FOUR.

The existence of SiC affects viscosity and wettability of the fluid phase, possibly altering grain growth anisotropy and final structure.

Post-sintering heat treatments may be related to crystallize residual amorphous stages at grain limits, enhancing high-temperature mechanical residential properties and oxidation resistance.

X-ray diffraction (XRD) and scanning electron microscopy (SEM) are consistently made use of to verify stage purity, lack of unfavorable secondary stages (e.g., Si ₂ N ₂ O), and uniform microstructure.

3. Mechanical and Thermal Performance Under Lots

3.1 Stamina, Durability, and Tiredness Resistance

Si Three N ₄– SiC composites demonstrate remarkable mechanical efficiency compared to monolithic porcelains, with flexural strengths going beyond 800 MPa and crack durability worths reaching 7– 9 MPa · m ONE/ ².

The reinforcing result of SiC particles restrains dislocation activity and fracture proliferation, while the lengthened Si six N ₄ grains remain to offer strengthening with pull-out and linking mechanisms.

This dual-toughening technique leads to a product highly immune to impact, thermal cycling, and mechanical tiredness– crucial for turning parts and structural aspects in aerospace and energy systems.

Creep resistance continues to be outstanding approximately 1300 ° C, credited to the security of the covalent network and minimized grain limit gliding when amorphous phases are minimized.

Hardness values typically vary from 16 to 19 Grade point average, using outstanding wear and disintegration resistance in unpleasant settings such as sand-laden circulations or gliding contacts.

3.2 Thermal Monitoring and Ecological Resilience

The addition of SiC substantially raises the thermal conductivity of the composite, commonly increasing that of pure Si six N ₄ (which varies from 15– 30 W/(m · K) )to 40– 60 W/(m · K) depending on SiC material and microstructure.

This improved heat transfer capacity allows for a lot more efficient thermal monitoring in parts subjected to extreme local home heating, such as combustion liners or plasma-facing components.

The composite retains dimensional stability under high thermal slopes, resisting spallation and fracturing as a result of matched thermal growth and high thermal shock specification (R-value).

Oxidation resistance is one more key advantage; SiC forms a safety silica (SiO TWO) layer upon exposure to oxygen at elevated temperature levels, which additionally densifies and secures surface issues.

This passive layer secures both SiC and Si ₃ N FOUR (which additionally oxidizes to SiO ₂ and N TWO), making certain long-lasting sturdiness in air, vapor, or combustion atmospheres.

4. Applications and Future Technological Trajectories

4.1 Aerospace, Power, and Industrial Equipment

Si Three N FOUR– SiC composites are progressively released in next-generation gas wind turbines, where they allow higher running temperatures, improved fuel performance, and reduced cooling needs.

Components such as turbine blades, combustor liners, and nozzle guide vanes gain from the product’s ability to hold up against thermal cycling and mechanical loading without significant deterioration.

In atomic power plants, specifically high-temperature gas-cooled reactors (HTGRs), these compounds act as fuel cladding or architectural supports because of their neutron irradiation resistance and fission product retention capacity.

In industrial settings, they are used in liquified metal handling, kiln furnishings, and wear-resistant nozzles and bearings, where conventional steels would stop working prematurely.

Their lightweight nature (thickness ~ 3.2 g/cm TWO) likewise makes them eye-catching for aerospace propulsion and hypersonic vehicle parts based on aerothermal home heating.

4.2 Advanced Production and Multifunctional Combination

Emerging research focuses on establishing functionally rated Si four N FOUR– SiC frameworks, where structure differs spatially to optimize thermal, mechanical, or electromagnetic homes across a solitary part.

Crossbreed systems integrating CMC (ceramic matrix composite) architectures with fiber reinforcement (e.g., SiC_f/ SiC– Si Six N ₄) press the borders of damages tolerance and strain-to-failure.

Additive production of these composites makes it possible for topology-optimized warmth exchangers, microreactors, and regenerative cooling networks with interior latticework frameworks unreachable via machining.

Furthermore, their inherent dielectric residential properties and thermal stability make them candidates for radar-transparent radomes and antenna home windows in high-speed platforms.

As needs grow for materials that perform accurately under extreme thermomechanical tons, Si five N FOUR– SiC compounds stand for a pivotal development in ceramic design, combining robustness with functionality in a solitary, lasting platform.

In conclusion, silicon nitride– silicon carbide composite porcelains exhibit the power of materials-by-design, leveraging the staminas of two advanced ceramics to produce a crossbreed system with the ability of prospering in one of the most serious operational settings.

Their continued development will play a main duty ahead of time tidy power, aerospace, and commercial modern technologies in the 21st century.

5. Distributor

TRUNNANO is a supplier of Spherical Tungsten Powder with over 12 years of experience in nano-building energy conservation and nanotechnology development. It accepts payment via Credit Card, T/T, West Union and Paypal. Trunnano will ship the goods to customers overseas through FedEx, DHL, by air, or by sea. If you want to know more about Spherical Tungsten Powder, please feel free to contact us and send an inquiry.
Tags: Silicon nitride and silicon carbide composite ceramic, Si3N4 and SiC, advanced ceramic

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Crystal Chemistry and Polymorphism

(Silicon Carbide Crucibles)

Silicon carbide (SiC) is a covalent ceramic made up of silicon and carbon atoms arranged in a tetrahedral lattice, creating among the most thermally and chemically robust products known.

It exists in over 250 polytypic kinds, with the 3C (cubic), 4H, and 6H hexagonal structures being most appropriate for high-temperature applications.

The strong Si– C bonds, with bond energy exceeding 300 kJ/mol, give extraordinary hardness, thermal conductivity, and resistance to thermal shock and chemical strike.

In crucible applications, sintered or reaction-bonded SiC is liked because of its ability to maintain architectural integrity under severe thermal gradients and corrosive molten atmospheres.

Unlike oxide porcelains, SiC does not go through turbulent phase shifts approximately its sublimation point (~ 2700 ° C), making it excellent for continual operation above 1600 ° C.

1.2 Thermal and Mechanical Performance

A specifying attribute of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m · K)– which promotes consistent warm circulation and lessens thermal anxiety during rapid home heating or air conditioning.

This property contrasts dramatically with low-conductivity ceramics like alumina (≈ 30 W/(m · K)), which are prone to splitting under thermal shock.

SiC also shows outstanding mechanical strength at elevated temperature levels, retaining over 80% of its room-temperature flexural strength (up to 400 MPa) also at 1400 ° C.

Its reduced coefficient of thermal growth (~ 4.0 × 10 ⁻⁶/ K) additionally enhances resistance to thermal shock, a crucial factor in repeated cycling between ambient and functional temperature levels.

In addition, SiC demonstrates remarkable wear and abrasion resistance, guaranteeing long service life in atmospheres entailing mechanical handling or stormy melt circulation.

2. Production Techniques and Microstructural Control

( Silicon Carbide Crucibles)

2.1 Sintering Techniques and Densification Strategies

Industrial SiC crucibles are primarily made with pressureless sintering, response bonding, or hot pushing, each offering unique advantages in price, pureness, and efficiency.

Pressureless sintering involves compacting fine SiC powder with sintering aids such as boron and carbon, complied with by high-temperature therapy (2000– 2200 ° C )in inert ambience to accomplish near-theoretical thickness.

This approach yields high-purity, high-strength crucibles appropriate for semiconductor and advanced alloy processing.

Reaction-bonded SiC (RBSC) is produced by penetrating a permeable carbon preform with liquified silicon, which reacts to develop β-SiC sitting, leading to a compound of SiC and recurring silicon.

While somewhat reduced in thermal conductivity as a result of metal silicon inclusions, RBSC supplies exceptional dimensional security and reduced production expense, making it prominent for large-scale commercial usage.

Hot-pressed SiC, though extra expensive, provides the highest possible density and purity, reserved for ultra-demanding applications such as single-crystal development.

2.2 Surface Area High Quality and Geometric Accuracy

Post-sintering machining, including grinding and washing, makes certain accurate dimensional resistances and smooth interior surfaces that lessen nucleation websites and minimize contamination threat.

Surface roughness is very carefully controlled to avoid thaw adhesion and help with easy release of strengthened materials.

Crucible geometry– such as wall surface density, taper angle, and bottom curvature– is maximized to stabilize thermal mass, structural toughness, and compatibility with heating system burner.

Personalized designs accommodate specific thaw volumes, heating profiles, and product sensitivity, making certain ideal efficiency throughout varied industrial procedures.

Advanced quality control, including X-ray diffraction, scanning electron microscopy, and ultrasonic screening, validates microstructural homogeneity and absence of defects like pores or fractures.

3. Chemical Resistance and Communication with Melts

3.1 Inertness in Hostile Atmospheres

SiC crucibles display remarkable resistance to chemical attack by molten steels, slags, and non-oxidizing salts, surpassing typical graphite and oxide ceramics.

They are secure in contact with liquified light weight aluminum, copper, silver, and their alloys, standing up to wetting and dissolution because of low interfacial energy and formation of safety surface oxides.

In silicon and germanium handling for photovoltaics and semiconductors, SiC crucibles stop metal contamination that could deteriorate electronic residential properties.

However, under highly oxidizing conditions or in the presence of alkaline fluxes, SiC can oxidize to develop silica (SiO TWO), which may respond better to form low-melting-point silicates.

Consequently, SiC is best matched for neutral or reducing atmospheres, where its stability is made the most of.

3.2 Limitations and Compatibility Considerations

Despite its effectiveness, SiC is not globally inert; it reacts with certain molten products, specifically iron-group steels (Fe, Ni, Carbon monoxide) at heats via carburization and dissolution processes.

In molten steel handling, SiC crucibles break down quickly and are for that reason avoided.

In a similar way, alkali and alkaline earth metals (e.g., Li, Na, Ca) can lower SiC, releasing carbon and developing silicides, restricting their use in battery material synthesis or responsive steel casting.

For molten glass and porcelains, SiC is typically compatible but might present trace silicon into extremely sensitive optical or digital glasses.

Recognizing these material-specific interactions is vital for picking the appropriate crucible type and making certain process pureness and crucible longevity.

4. Industrial Applications and Technological Evolution

4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors

SiC crucibles are indispensable in the production of multicrystalline and monocrystalline silicon ingots for solar batteries, where they stand up to extended direct exposure to thaw silicon at ~ 1420 ° C.

Their thermal security ensures consistent formation and reduces dislocation thickness, straight influencing photovoltaic efficiency.

In shops, SiC crucibles are made use of for melting non-ferrous steels such as light weight aluminum and brass, supplying longer life span and reduced dross formation compared to clay-graphite alternatives.

They are additionally utilized in high-temperature research laboratories for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of innovative ceramics and intermetallic compounds.

4.2 Future Fads and Advanced Material Combination

Arising applications consist of making use of SiC crucibles in next-generation nuclear products screening and molten salt reactors, where their resistance to radiation and molten fluorides is being reviewed.

Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O FIVE) are being applied to SiC surface areas to even more enhance chemical inertness and stop silicon diffusion in ultra-high-purity procedures.

Additive production of SiC parts utilizing binder jetting or stereolithography is under advancement, encouraging facility geometries and quick prototyping for specialized crucible styles.

As demand grows for energy-efficient, long lasting, and contamination-free high-temperature handling, silicon carbide crucibles will remain a cornerstone technology in innovative products making.

To conclude, silicon carbide crucibles stand for a crucial enabling part in high-temperature industrial and scientific procedures.

Their unmatched mix of thermal stability, mechanical toughness, and chemical resistance makes them the product of selection for applications where efficiency and integrity are extremely important.

5. Distributor

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials and products. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.
Tags: Silicon Carbide Crucibles, Silicon Carbide Ceramic, Silicon Carbide Ceramic Crucibles

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Composition and Polymorphic Structure

(Silicon Carbide Ceramics)

Silicon carbide (SiC) is a covalent ceramic substance made up of silicon and carbon atoms in a 1:1 stoichiometric proportion, renowned for its exceptional hardness, thermal conductivity, and chemical inertness.

It exists in over 250 polytypes– crystal structures differing in piling sequences– amongst which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are the most highly pertinent.

The strong directional covalent bonds (Si– C bond energy ~ 318 kJ/mol) cause a high melting factor (~ 2700 ° C), reduced thermal expansion (~ 4.0 × 10 ⁻⁶/ K), and outstanding resistance to thermal shock.

Unlike oxide porcelains such as alumina, SiC lacks an indigenous lustrous stage, contributing to its stability in oxidizing and corrosive ambiences up to 1600 ° C.

Its vast bandgap (2.3– 3.3 eV, relying on polytype) likewise enhances it with semiconductor buildings, allowing twin use in architectural and electronic applications.

1.2 Sintering Obstacles and Densification Techniques

Pure SiC is very difficult to compress because of its covalent bonding and reduced self-diffusion coefficients, demanding the use of sintering help or advanced processing methods.

Reaction-bonded SiC (RB-SiC) is produced by penetrating permeable carbon preforms with molten silicon, creating SiC in situ; this method returns near-net-shape parts with recurring silicon (5– 20%).

Solid-state sintered SiC (SSiC) makes use of boron and carbon ingredients to promote densification at ~ 2000– 2200 ° C under inert environment, attaining > 99% academic density and exceptional mechanical homes.

Liquid-phase sintered SiC (LPS-SiC) uses oxide additives such as Al Two O FOUR– Y ₂ O THREE, developing a transient fluid that enhances diffusion however may minimize high-temperature stamina because of grain-boundary phases.

Hot pressing and stimulate plasma sintering (SPS) use fast, pressure-assisted densification with fine microstructures, perfect for high-performance elements calling for minimal grain growth.

2. Mechanical and Thermal Performance Characteristics

2.1 Strength, Hardness, and Put On Resistance

Silicon carbide ceramics exhibit Vickers firmness worths of 25– 30 Grade point average, 2nd only to diamond and cubic boron nitride among design materials.

Their flexural stamina usually ranges from 300 to 600 MPa, with fracture sturdiness (K_IC) of 3– 5 MPa · m ONE/ TWO– moderate for ceramics yet enhanced through microstructural design such as hair or fiber support.

The mix of high firmness and elastic modulus (~ 410 Grade point average) makes SiC exceptionally resistant to unpleasant and erosive wear, outshining tungsten carbide and solidified steel in slurry and particle-laden atmospheres.

( Silicon Carbide Ceramics)

In commercial applications such as pump seals, nozzles, and grinding media, SiC parts demonstrate service lives a number of times much longer than traditional alternatives.

Its reduced thickness (~ 3.1 g/cm SIX) more contributes to use resistance by reducing inertial pressures in high-speed turning parts.

2.2 Thermal Conductivity and Stability

One of SiC’s most distinguishing attributes is its high thermal conductivity– ranging from 80 to 120 W/(m · K )for polycrystalline types, and up to 490 W/(m · K) for single-crystal 4H-SiC– going beyond most steels other than copper and light weight aluminum.

This building makes it possible for efficient warmth dissipation in high-power electronic substratums, brake discs, and warmth exchanger components.

Paired with reduced thermal development, SiC displays superior thermal shock resistance, measured by the R-parameter (σ(1– ν)k/ αE), where high worths indicate durability to quick temperature changes.

As an example, SiC crucibles can be warmed from space temperature to 1400 ° C in mins without splitting, a feat unattainable for alumina or zirconia in comparable conditions.

In addition, SiC maintains toughness up to 1400 ° C in inert environments, making it ideal for heater fixtures, kiln furniture, and aerospace parts exposed to extreme thermal cycles.

3. Chemical Inertness and Corrosion Resistance

3.1 Actions in Oxidizing and Decreasing Atmospheres

At temperatures below 800 ° C, SiC is extremely secure in both oxidizing and decreasing settings.

Over 800 ° C in air, a protective silica (SiO ₂) layer kinds on the surface area using oxidation (SiC + 3/2 O ₂ → SiO ₂ + CO), which passivates the material and slows additional degradation.

Nevertheless, in water vapor-rich or high-velocity gas streams over 1200 ° C, this silica layer can volatilize as Si(OH)FOUR, leading to accelerated economic downturn– a crucial factor to consider in wind turbine and combustion applications.

In lowering atmospheres or inert gases, SiC stays secure up to its decay temperature (~ 2700 ° C), without phase changes or toughness loss.

This security makes it suitable for molten metal handling, such as aluminum or zinc crucibles, where it withstands wetting and chemical assault far better than graphite or oxides.

3.2 Resistance to Acids, Alkalis, and Molten Salts

Silicon carbide is practically inert to all acids other than hydrofluoric acid (HF) and solid oxidizing acid blends (e.g., HF– HNO ₃).

It reveals superb resistance to alkalis approximately 800 ° C, though long term direct exposure to molten NaOH or KOH can cause surface area etching by means of development of soluble silicates.

In liquified salt settings– such as those in focused solar energy (CSP) or atomic power plants– SiC demonstrates remarkable rust resistance compared to nickel-based superalloys.

This chemical toughness underpins its usage in chemical procedure tools, consisting of valves, liners, and heat exchanger tubes taking care of hostile media like chlorine, sulfuric acid, or salt water.

4. Industrial Applications and Emerging Frontiers

4.1 Established Uses in Power, Protection, and Production

Silicon carbide porcelains are indispensable to countless high-value commercial systems.

In the power industry, they function as wear-resistant liners in coal gasifiers, components in nuclear fuel cladding (SiC/SiC compounds), and substrates for high-temperature strong oxide fuel cells (SOFCs).

Defense applications include ballistic shield plates, where SiC’s high hardness-to-density proportion gives premium protection versus high-velocity projectiles contrasted to alumina or boron carbide at lower price.

In production, SiC is utilized for precision bearings, semiconductor wafer handling parts, and abrasive blowing up nozzles due to its dimensional security and purity.

Its usage in electrical lorry (EV) inverters as a semiconductor substratum is rapidly expanding, driven by performance gains from wide-bandgap electronic devices.

4.2 Next-Generation Dopes and Sustainability

Continuous research study focuses on SiC fiber-reinforced SiC matrix composites (SiC/SiC), which show pseudo-ductile actions, improved strength, and maintained toughness over 1200 ° C– suitable for jet engines and hypersonic lorry leading sides.

Additive production of SiC via binder jetting or stereolithography is progressing, allowing complicated geometries formerly unattainable via traditional forming techniques.

From a sustainability point of view, SiC’s durability decreases substitute regularity and lifecycle discharges in commercial systems.

Recycling of SiC scrap from wafer slicing or grinding is being established via thermal and chemical healing processes to redeem high-purity SiC powder.

As industries push toward higher effectiveness, electrification, and extreme-environment operation, silicon carbide-based porcelains will remain at the forefront of sophisticated materials design, bridging the space in between architectural resilience and practical convenience.

5. Distributor

TRUNNANO is a supplier of Spherical Tungsten Powder with over 12 years of experience in nano-building energy conservation and nanotechnology development. It accepts payment via Credit Card, T/T, West Union and Paypal. Trunnano will ship the goods to customers overseas through FedEx, DHL, by air, or by sea. If you want to know more about Spherical Tungsten Powder, please feel free to contact us and send an inquiry.
Tags: silicon carbide ceramic,silicon carbide ceramic products, industry ceramic

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Polymorphism and Atomic Bonding in SiC

(Silicon Carbide Ceramic Plates)

Silicon carbide (SiC) is a covalent ceramic substance composed of silicon and carbon atoms in a 1:1 stoichiometric proportion, identified by its amazing polymorphism– over 250 well-known polytypes– all sharing strong directional covalent bonds but differing in piling series of Si-C bilayers.

The most technically appropriate polytypes are 3C-SiC (cubic zinc blende framework), and the hexagonal types 4H-SiC and 6H-SiC, each exhibiting subtle variations in bandgap, electron wheelchair, and thermal conductivity that affect their suitability for particular applications.

The strength of the Si– C bond, with a bond power of about 318 kJ/mol, underpins SiC’s extraordinary hardness (Mohs solidity of 9– 9.5), high melting point (~ 2700 ° C), and resistance to chemical degradation and thermal shock.

In ceramic plates, the polytype is commonly chosen based on the intended usage: 6H-SiC is common in structural applications as a result of its simplicity of synthesis, while 4H-SiC controls in high-power electronic devices for its remarkable fee provider movement.

The vast bandgap (2.9– 3.3 eV relying on polytype) additionally makes SiC an exceptional electric insulator in its pure type, though it can be doped to work as a semiconductor in specialized digital gadgets.

1.2 Microstructure and Stage Purity in Ceramic Plates

The efficiency of silicon carbide ceramic plates is critically dependent on microstructural features such as grain size, density, stage homogeneity, and the visibility of additional stages or contaminations.

Premium plates are usually produced from submicron or nanoscale SiC powders through sophisticated sintering techniques, causing fine-grained, totally thick microstructures that make best use of mechanical strength and thermal conductivity.

Impurities such as cost-free carbon, silica (SiO TWO), or sintering help like boron or light weight aluminum need to be thoroughly managed, as they can create intergranular films that reduce high-temperature strength and oxidation resistance.

Residual porosity, also at reduced levels (

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials such as Silicon Carbide Ceramic Plates. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.
Tags: silicon carbide plate,carbide plate,silicon carbide sheet

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Cubic and Hexagonal Polytypes: From 3C to 6H and Beyond

(Silicon Carbide Ceramics)

Silicon carbide (SiC) is a covalently adhered ceramic made up of silicon and carbon atoms organized in a tetrahedral coordination, creating one of one of the most complicated systems of polytypism in products scientific research.

Unlike many ceramics with a single secure crystal structure, SiC exists in over 250 recognized polytypes– distinctive stacking series of close-packed Si-C bilayers along the c-axis– ranging from cubic 3C-SiC (also referred to as β-SiC) to hexagonal 6H-SiC and rhombohedral 15R-SiC.

One of the most usual polytypes used in engineering applications are 3C (cubic), 4H, and 6H (both hexagonal), each displaying somewhat different electronic band structures and thermal conductivities.

3C-SiC, with its zinc blende structure, has the narrowest bandgap (~ 2.3 eV) and is typically grown on silicon substratums for semiconductor gadgets, while 4H-SiC uses exceptional electron wheelchair and is preferred for high-power electronic devices.

The strong covalent bonding and directional nature of the Si– C bond provide exceptional hardness, thermal stability, and resistance to sneak and chemical assault, making SiC ideal for severe setting applications.

1.2 Issues, Doping, and Electronic Residence

Despite its architectural intricacy, SiC can be doped to achieve both n-type and p-type conductivity, allowing its use in semiconductor tools.

Nitrogen and phosphorus serve as donor pollutants, introducing electrons into the transmission band, while aluminum and boron function as acceptors, creating openings in the valence band.

However, p-type doping performance is limited by high activation energies, particularly in 4H-SiC, which postures challenges for bipolar gadget layout.

Indigenous flaws such as screw dislocations, micropipes, and stacking faults can weaken device performance by serving as recombination facilities or leak courses, demanding top notch single-crystal growth for digital applications.

The wide bandgap (2.3– 3.3 eV relying on polytype), high breakdown electrical field (~ 3 MV/cm), and exceptional thermal conductivity (~ 3– 4 W/m · K for 4H-SiC) make SiC far superior to silicon in high-temperature, high-voltage, and high-frequency power electronics.

2. Processing and Microstructural Engineering

( Silicon Carbide Ceramics)

2.1 Sintering and Densification Techniques

Silicon carbide is inherently challenging to compress because of its strong covalent bonding and reduced self-diffusion coefficients, needing sophisticated processing approaches to attain full density without additives or with minimal sintering aids.

Pressureless sintering of submicron SiC powders is feasible with the enhancement of boron and carbon, which promote densification by eliminating oxide layers and boosting solid-state diffusion.

Warm pressing applies uniaxial pressure throughout home heating, allowing complete densification at lower temperature levels (~ 1800– 2000 ° C )and producing fine-grained, high-strength components appropriate for cutting tools and put on components.

For large or intricate forms, response bonding is employed, where permeable carbon preforms are infiltrated with liquified silicon at ~ 1600 ° C, creating β-SiC in situ with minimal shrinking.

However, recurring totally free silicon (~ 5– 10%) remains in the microstructure, restricting high-temperature performance and oxidation resistance over 1300 ° C.

2.2 Additive Manufacturing and Near-Net-Shape Construction

Recent advances in additive production (AM), especially binder jetting and stereolithography using SiC powders or preceramic polymers, make it possible for the fabrication of intricate geometries formerly unattainable with conventional techniques.

In polymer-derived ceramic (PDC) paths, liquid SiC forerunners are shaped by means of 3D printing and afterwards pyrolyzed at heats to generate amorphous or nanocrystalline SiC, frequently requiring additional densification.

These methods minimize machining costs and product waste, making SiC more accessible for aerospace, nuclear, and warmth exchanger applications where elaborate styles boost performance.

Post-processing actions such as chemical vapor infiltration (CVI) or fluid silicon seepage (LSI) are often utilized to boost density and mechanical integrity.

3. Mechanical, Thermal, and Environmental Performance

3.1 Stamina, Firmness, and Wear Resistance

Silicon carbide places amongst the hardest recognized products, with a Mohs hardness of ~ 9.5 and Vickers firmness exceeding 25 GPa, making it extremely immune to abrasion, erosion, and scraping.

Its flexural toughness generally varies from 300 to 600 MPa, depending upon processing technique and grain dimension, and it retains toughness at temperature levels approximately 1400 ° C in inert ambiences.

Crack sturdiness, while moderate (~ 3– 4 MPa · m ONE/ TWO), suffices for many structural applications, particularly when incorporated with fiber reinforcement in ceramic matrix compounds (CMCs).

SiC-based CMCs are utilized in generator blades, combustor linings, and brake systems, where they supply weight savings, fuel performance, and prolonged life span over metal counterparts.

Its exceptional wear resistance makes SiC ideal for seals, bearings, pump elements, and ballistic shield, where durability under severe mechanical loading is essential.

3.2 Thermal Conductivity and Oxidation Stability

One of SiC’s most beneficial residential or commercial properties is its high thermal conductivity– as much as 490 W/m · K for single-crystal 4H-SiC and ~ 30– 120 W/m · K for polycrystalline types– going beyond that of lots of metals and enabling effective warmth dissipation.

This home is critical in power electronic devices, where SiC gadgets create much less waste heat and can operate at greater power thickness than silicon-based gadgets.

At raised temperatures in oxidizing atmospheres, SiC forms a safety silica (SiO ₂) layer that reduces more oxidation, giving excellent ecological longevity up to ~ 1600 ° C.

Nevertheless, in water vapor-rich settings, this layer can volatilize as Si(OH)₄, causing sped up destruction– a crucial difficulty in gas turbine applications.

4. Advanced Applications in Energy, Electronics, and Aerospace

4.1 Power Electronic Devices and Semiconductor Devices

Silicon carbide has actually reinvented power electronics by making it possible for gadgets such as Schottky diodes, MOSFETs, and JFETs that run at greater voltages, frequencies, and temperatures than silicon matchings.

These tools decrease power losses in electric lorries, renewable resource inverters, and commercial electric motor drives, contributing to international energy performance enhancements.

The ability to operate at joint temperatures over 200 ° C permits streamlined cooling systems and boosted system integrity.

Additionally, SiC wafers are made use of as substratums for gallium nitride (GaN) epitaxy in high-electron-mobility transistors (HEMTs), incorporating the benefits of both wide-bandgap semiconductors.

4.2 Nuclear, Aerospace, and Optical Systems

In atomic power plants, SiC is a vital element of accident-tolerant fuel cladding, where its reduced neutron absorption cross-section, radiation resistance, and high-temperature stamina enhance safety and efficiency.

In aerospace, SiC fiber-reinforced composites are used in jet engines and hypersonic cars for their light-weight and thermal stability.

Additionally, ultra-smooth SiC mirrors are employed precede telescopes due to their high stiffness-to-density proportion, thermal security, and polishability to sub-nanometer roughness.

In recap, silicon carbide ceramics stand for a foundation of modern innovative products, integrating extraordinary mechanical, thermal, and digital properties.

Through accurate control of polytype, microstructure, and processing, SiC continues to allow technical innovations in energy, transportation, and severe environment engineering.

5. Distributor

TRUNNANO is a supplier of Spherical Tungsten Powder with over 12 years of experience in nano-building energy conservation and nanotechnology development. It accepts payment via Credit Card, T/T, West Union and Paypal. Trunnano will ship the goods to customers overseas through FedEx, DHL, by air, or by sea. If you want to know more about Spherical Tungsten Powder, please feel free to contact us and send an inquiry(sales5@nanotrun.com).
Tags: silicon carbide ceramic,silicon carbide ceramic products, industry ceramic

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Atomic Framework and Polytypic Intricacy

(Silicon Carbide Powder)

Silicon carbide (SiC) is a binary compound composed of silicon and carbon atoms set up in an extremely stable covalent latticework, distinguished by its outstanding firmness, thermal conductivity, and electronic properties.

Unlike standard semiconductors such as silicon or germanium, SiC does not exist in a single crystal structure but materializes in over 250 distinct polytypes– crystalline types that vary in the stacking sequence of silicon-carbon bilayers along the c-axis.

The most technologically appropriate polytypes include 3C-SiC (cubic, zincblende framework), 4H-SiC, and 6H-SiC (both hexagonal), each displaying subtly different digital and thermal qualities.

Amongst these, 4H-SiC is particularly preferred for high-power and high-frequency electronic devices because of its higher electron wheelchair and lower on-resistance compared to other polytypes.

The strong covalent bonding– comprising roughly 88% covalent and 12% ionic character– confers impressive mechanical strength, chemical inertness, and resistance to radiation damage, making SiC ideal for operation in extreme settings.

1.2 Digital and Thermal Features

The digital prevalence of SiC comes from its vast bandgap, which varies from 2.3 eV (3C-SiC) to 3.3 eV (4H-SiC), substantially bigger than silicon’s 1.1 eV.

This large bandgap enables SiC tools to run at much higher temperatures– up to 600 ° C– without inherent provider generation frustrating the device, a crucial constraint in silicon-based electronic devices.

Additionally, SiC has a high vital electrical field strength (~ 3 MV/cm), around 10 times that of silicon, allowing for thinner drift layers and higher malfunction voltages in power gadgets.

Its thermal conductivity (~ 3.7– 4.9 W/cm · K for 4H-SiC) exceeds that of copper, assisting in efficient warmth dissipation and decreasing the requirement for intricate cooling systems in high-power applications.

Combined with a high saturation electron velocity (~ 2 × 10 ⁷ cm/s), these buildings allow SiC-based transistors and diodes to switch faster, manage greater voltages, and run with higher energy efficiency than their silicon counterparts.

These characteristics collectively place SiC as a fundamental material for next-generation power electronics, particularly in electrical cars, renewable resource systems, and aerospace technologies.

( Silicon Carbide Powder)

2. Synthesis and Construction of High-Quality Silicon Carbide Crystals

2.1 Mass Crystal Development via Physical Vapor Transport

The production of high-purity, single-crystal SiC is one of one of the most tough elements of its technical release, primarily due to its high sublimation temperature level (~ 2700 ° C )and complex polytype control.

The leading technique for bulk development is the physical vapor transportation (PVT) strategy, likewise called the modified Lely technique, in which high-purity SiC powder is sublimated in an argon environment at temperatures surpassing 2200 ° C and re-deposited onto a seed crystal.

Exact control over temperature gradients, gas circulation, and pressure is important to lessen defects such as micropipes, misplacements, and polytype incorporations that degrade device efficiency.

Regardless of advancements, the development rate of SiC crystals stays slow– generally 0.1 to 0.3 mm/h– making the procedure energy-intensive and costly compared to silicon ingot production.

Continuous study focuses on optimizing seed alignment, doping uniformity, and crucible design to improve crystal top quality and scalability.

2.2 Epitaxial Layer Deposition and Device-Ready Substrates

For digital device manufacture, a slim epitaxial layer of SiC is grown on the mass substratum utilizing chemical vapor deposition (CVD), usually using silane (SiH FOUR) and propane (C ₃ H EIGHT) as precursors in a hydrogen environment.

This epitaxial layer should exhibit precise density control, low problem density, and tailored doping (with nitrogen for n-type or aluminum for p-type) to create the active areas of power tools such as MOSFETs and Schottky diodes.

The lattice mismatch in between the substrate and epitaxial layer, in addition to recurring tension from thermal expansion distinctions, can present stacking mistakes and screw dislocations that impact tool dependability.

Advanced in-situ monitoring and process optimization have substantially lowered problem densities, allowing the business manufacturing of high-performance SiC tools with lengthy operational lifetimes.

Additionally, the advancement of silicon-compatible processing methods– such as completely dry etching, ion implantation, and high-temperature oxidation– has helped with combination right into existing semiconductor production lines.

3. Applications in Power Electronics and Power Equipment

3.1 High-Efficiency Power Conversion and Electric Movement

Silicon carbide has come to be a keystone product in modern power electronics, where its ability to switch at high frequencies with very little losses translates right into smaller, lighter, and more reliable systems.

In electrical vehicles (EVs), SiC-based inverters convert DC battery power to air conditioner for the motor, running at frequencies up to 100 kHz– considerably higher than silicon-based inverters– minimizing the size of passive parts like inductors and capacitors.

This results in enhanced power density, prolonged driving array, and improved thermal administration, straight addressing crucial difficulties in EV layout.

Significant auto suppliers and distributors have actually taken on SiC MOSFETs in their drivetrain systems, accomplishing energy financial savings of 5– 10% compared to silicon-based services.

Similarly, in onboard battery chargers and DC-DC converters, SiC devices allow faster billing and higher performance, increasing the shift to lasting transport.

3.2 Renewable Resource and Grid Framework

In solar (PV) solar inverters, SiC power components improve conversion effectiveness by reducing changing and transmission losses, particularly under partial tons conditions usual in solar power generation.

This enhancement raises the general power return of solar setups and decreases cooling demands, decreasing system prices and improving reliability.

In wind turbines, SiC-based converters deal with the variable frequency output from generators much more effectively, allowing far better grid integration and power high quality.

Beyond generation, SiC is being released in high-voltage straight existing (HVDC) transmission systems and solid-state transformers, where its high failure voltage and thermal security support portable, high-capacity power shipment with very little losses over fars away.

These advancements are vital for modernizing aging power grids and fitting the growing share of distributed and recurring eco-friendly resources.

4. Emerging Duties in Extreme-Environment and Quantum Technologies

4.1 Procedure in Harsh Conditions: Aerospace, Nuclear, and Deep-Well Applications

The effectiveness of SiC prolongs past electronic devices into settings where traditional materials fail.

In aerospace and defense systems, SiC sensing units and electronic devices run accurately in the high-temperature, high-radiation problems near jet engines, re-entry cars, and area probes.

Its radiation hardness makes it perfect for atomic power plant tracking and satellite electronic devices, where exposure to ionizing radiation can break down silicon devices.

In the oil and gas sector, SiC-based sensing units are made use of in downhole boring tools to hold up against temperatures exceeding 300 ° C and harsh chemical environments, allowing real-time data acquisition for boosted extraction effectiveness.

These applications leverage SiC’s capability to keep structural stability and electrical capability under mechanical, thermal, and chemical stress.

4.2 Integration into Photonics and Quantum Sensing Platforms

Beyond classical electronic devices, SiC is emerging as an encouraging platform for quantum modern technologies as a result of the visibility of optically active factor flaws– such as divacancies and silicon jobs– that show spin-dependent photoluminescence.

These flaws can be adjusted at area temperature level, working as quantum little bits (qubits) or single-photon emitters for quantum interaction and picking up.

The large bandgap and low inherent carrier focus enable lengthy spin comprehensibility times, essential for quantum data processing.

Moreover, SiC works with microfabrication strategies, allowing the combination of quantum emitters into photonic circuits and resonators.

This mix of quantum performance and commercial scalability positions SiC as a special material linking the space between essential quantum scientific research and useful device engineering.

In recap, silicon carbide stands for a standard change in semiconductor modern technology, providing exceptional efficiency in power performance, thermal monitoring, and environmental strength.

From allowing greener power systems to sustaining exploration in space and quantum realms, SiC remains to redefine the limitations of what is technologically feasible.

Vendor

RBOSCHCO is a trusted global chemical material supplier & manufacturer with over 12 years experience in providing super high-quality chemicals and Nanomaterials. The company export to many countries, such as USA, Canada, Europe, UAE, South Africa, Tanzania, Kenya, Egypt, Nigeria, Cameroon, Uganda, Turkey, Mexico, Azerbaijan, Belgium, Cyprus, Czech Republic, Brazil, Chile, Argentina, Dubai, Japan, Korea, Vietnam, Thailand, Malaysia, Indonesia, Australia,Germany, France, Italy, Portugal etc. As a leading nanotechnology development manufacturer, RBOSCHCO dominates the market. Our professional work team provides perfect solutions to help improve the efficiency of various industries, create value, and easily cope with various challenges. If you are looking for silicon carbide insulator, please send an email to: sales1@rboschco.com
Tags: silicon carbide,silicon carbide mosfet,mosfet sic

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Crystal Chemistry and Polytypic Variety

(Silicon Carbide Ceramics)

Silicon carbide (SiC) is a covalently adhered ceramic product made up of silicon and carbon atoms organized in a tetrahedral sychronisation, creating a very secure and durable crystal latticework.

Unlike several traditional ceramics, SiC does not possess a solitary, distinct crystal framework; instead, it displays an exceptional phenomenon known as polytypism, where the very same chemical make-up can take shape into over 250 unique polytypes, each differing in the piling series of close-packed atomic layers.

The most technologically substantial polytypes are 3C-SiC (cubic, zinc blende structure), 4H-SiC, and 6H-SiC (both hexagonal), each offering different digital, thermal, and mechanical properties.

3C-SiC, additionally known as beta-SiC, is normally created at reduced temperature levels and is metastable, while 4H and 6H polytypes, referred to as alpha-SiC, are much more thermally steady and commonly utilized in high-temperature and electronic applications.

This architectural variety enables targeted product option based upon the designated application, whether it be in power electronics, high-speed machining, or severe thermal settings.

1.2 Bonding Attributes and Resulting Residence

The stamina of SiC stems from its strong covalent Si-C bonds, which are brief in length and very directional, leading to a rigid three-dimensional network.

This bonding configuration presents outstanding mechanical residential properties, including high solidity (typically 25– 30 GPa on the Vickers range), superb flexural stamina (up to 600 MPa for sintered kinds), and good fracture sturdiness about various other porcelains.

The covalent nature additionally adds to SiC’s superior thermal conductivity, which can reach 120– 490 W/m · K relying on the polytype and pureness– similar to some steels and much exceeding most structural ceramics.

Additionally, SiC shows a reduced coefficient of thermal growth, around 4.0– 5.6 × 10 ⁻⁶/ K, which, when integrated with high thermal conductivity, offers it outstanding thermal shock resistance.

This suggests SiC parts can undergo fast temperature level modifications without cracking, an essential attribute in applications such as heating system components, heat exchangers, and aerospace thermal protection systems.

2. Synthesis and Processing Strategies for Silicon Carbide Ceramics

( Silicon Carbide Ceramics)

2.1 Main Production Techniques: From Acheson to Advanced Synthesis

The commercial production of silicon carbide go back to the late 19th century with the creation of the Acheson process, a carbothermal reduction method in which high-purity silica (SiO TWO) and carbon (normally oil coke) are heated to temperature levels above 2200 ° C in an electrical resistance furnace.

While this technique stays extensively used for producing coarse SiC powder for abrasives and refractories, it yields material with pollutants and uneven particle morphology, restricting its use in high-performance porcelains.

Modern developments have actually resulted in alternate synthesis courses such as chemical vapor deposition (CVD), which produces ultra-high-purity, single-crystal SiC for semiconductor applications, and laser-assisted or plasma-enhanced synthesis for nanoscale powders.

These sophisticated approaches make it possible for accurate control over stoichiometry, particle size, and phase purity, essential for tailoring SiC to particular engineering demands.

2.2 Densification and Microstructural Control

One of the best obstacles in producing SiC porcelains is accomplishing full densification due to its solid covalent bonding and low self-diffusion coefficients, which hinder conventional sintering.

To conquer this, numerous specialized densification methods have actually been developed.

Reaction bonding includes infiltrating a permeable carbon preform with molten silicon, which reacts to develop SiC sitting, causing a near-net-shape part with marginal shrinkage.

Pressureless sintering is accomplished by including sintering help such as boron and carbon, which promote grain limit diffusion and remove pores.

Hot pressing and hot isostatic pushing (HIP) use exterior stress throughout home heating, permitting full densification at lower temperatures and creating products with remarkable mechanical buildings.

These handling techniques make it possible for the manufacture of SiC parts with fine-grained, uniform microstructures, critical for maximizing stamina, use resistance, and reliability.

3. Practical Performance and Multifunctional Applications

3.1 Thermal and Mechanical Resilience in Harsh Atmospheres

Silicon carbide porcelains are distinctively suited for procedure in extreme problems as a result of their capability to maintain architectural integrity at high temperatures, stand up to oxidation, and withstand mechanical wear.

In oxidizing atmospheres, SiC creates a safety silica (SiO TWO) layer on its surface, which slows further oxidation and allows continual use at temperatures up to 1600 ° C.

This oxidation resistance, incorporated with high creep resistance, makes SiC perfect for elements in gas generators, combustion chambers, and high-efficiency heat exchangers.

Its phenomenal hardness and abrasion resistance are manipulated in commercial applications such as slurry pump components, sandblasting nozzles, and cutting tools, where steel options would quickly break down.

In addition, SiC’s reduced thermal development and high thermal conductivity make it a preferred material for mirrors in space telescopes and laser systems, where dimensional stability under thermal cycling is paramount.

3.2 Electric and Semiconductor Applications

Past its structural utility, silicon carbide plays a transformative role in the area of power electronics.

4H-SiC, particularly, possesses a vast bandgap of around 3.2 eV, making it possible for tools to run at higher voltages, temperature levels, and switching frequencies than standard silicon-based semiconductors.

This results in power devices– such as Schottky diodes, MOSFETs, and JFETs– with dramatically decreased power losses, smaller sized dimension, and enhanced efficiency, which are now widely made use of in electrical cars, renewable energy inverters, and clever grid systems.

The high break down electrical field of SiC (regarding 10 times that of silicon) enables thinner drift layers, decreasing on-resistance and developing device performance.

In addition, SiC’s high thermal conductivity aids dissipate heat effectively, reducing the need for cumbersome cooling systems and enabling even more compact, trusted digital components.

4. Arising Frontiers and Future Outlook in Silicon Carbide Innovation

4.1 Combination in Advanced Power and Aerospace Solutions

The continuous transition to clean energy and electrified transport is driving unmatched need for SiC-based components.

In solar inverters, wind power converters, and battery administration systems, SiC gadgets add to higher energy conversion effectiveness, directly lowering carbon emissions and functional prices.

In aerospace, SiC fiber-reinforced SiC matrix compounds (SiC/SiC CMCs) are being created for wind turbine blades, combustor liners, and thermal defense systems, offering weight savings and efficiency gains over nickel-based superalloys.

These ceramic matrix compounds can run at temperatures exceeding 1200 ° C, enabling next-generation jet engines with greater thrust-to-weight proportions and enhanced fuel efficiency.

4.2 Nanotechnology and Quantum Applications

At the nanoscale, silicon carbide displays unique quantum homes that are being explored for next-generation modern technologies.

Certain polytypes of SiC host silicon vacancies and divacancies that act as spin-active defects, functioning as quantum bits (qubits) for quantum computer and quantum noticing applications.

These flaws can be optically booted up, adjusted, and read out at area temperature level, a significant advantage over numerous other quantum systems that require cryogenic problems.

In addition, SiC nanowires and nanoparticles are being explored for usage in field exhaust tools, photocatalysis, and biomedical imaging because of their high facet ratio, chemical security, and tunable digital buildings.

As research study progresses, the integration of SiC right into crossbreed quantum systems and nanoelectromechanical gadgets (NEMS) promises to expand its duty beyond standard design domains.

4.3 Sustainability and Lifecycle Factors To Consider

The manufacturing of SiC is energy-intensive, particularly in high-temperature synthesis and sintering processes.

Nevertheless, the lasting advantages of SiC parts– such as prolonged life span, decreased upkeep, and enhanced system performance– frequently exceed the initial ecological impact.

Initiatives are underway to develop even more sustainable production paths, including microwave-assisted sintering, additive manufacturing (3D printing) of SiC, and recycling of SiC waste from semiconductor wafer handling.

These technologies aim to minimize energy consumption, reduce material waste, and support the round economy in advanced products sectors.

Finally, silicon carbide porcelains stand for a keystone of modern-day materials science, connecting the gap between structural sturdiness and useful versatility.

From enabling cleaner power systems to powering quantum modern technologies, SiC remains to redefine the borders of what is feasible in engineering and science.

As handling strategies develop and new applications emerge, the future of silicon carbide stays remarkably intense.

5. Distributor

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials and products. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.(nanotrun@yahoo.com)
Tags: Silicon Carbide Ceramics,silicon carbide,silicon carbide price

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]
